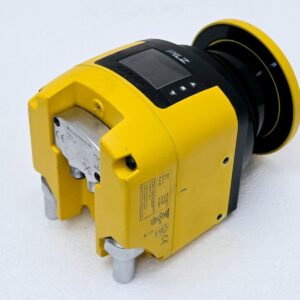

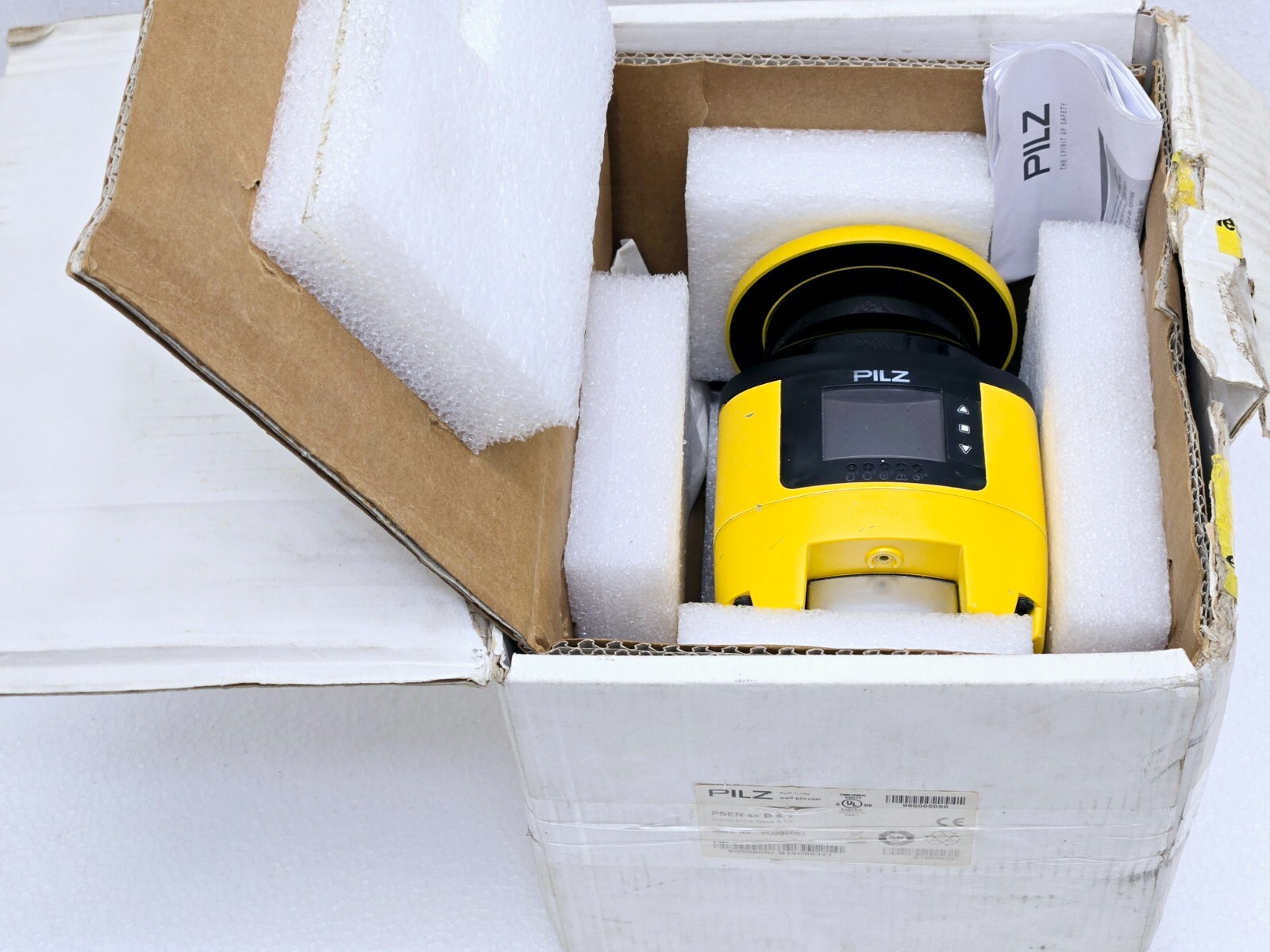

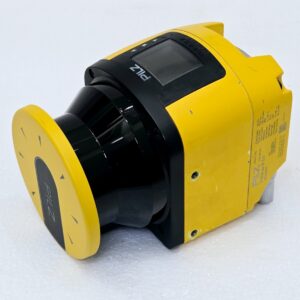

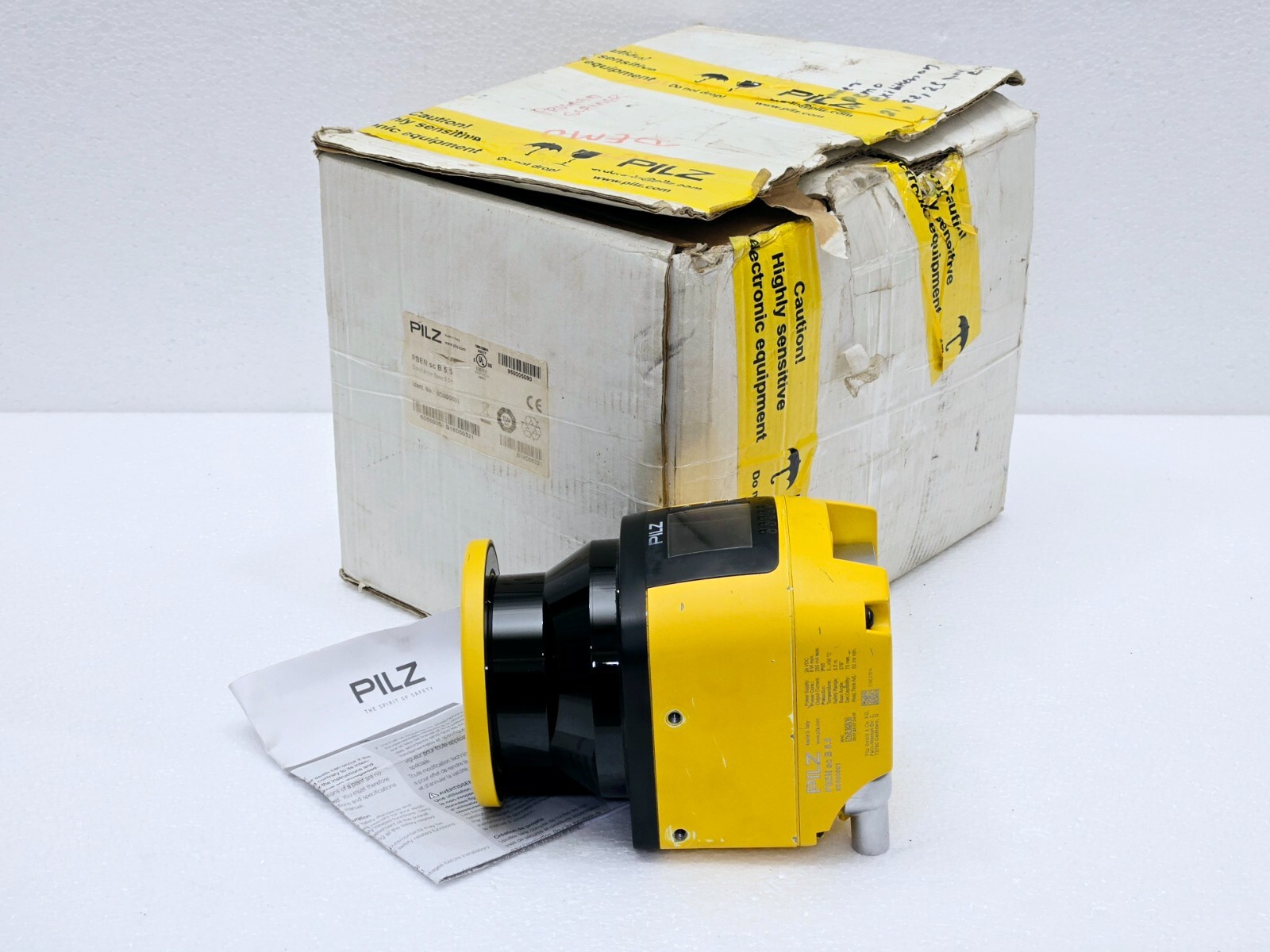

PILZ PSEN sc B5.5 6D000001 Safety Laser Scanner PSENscan Scan Angle 275°

This product data sheet is originally written in English.

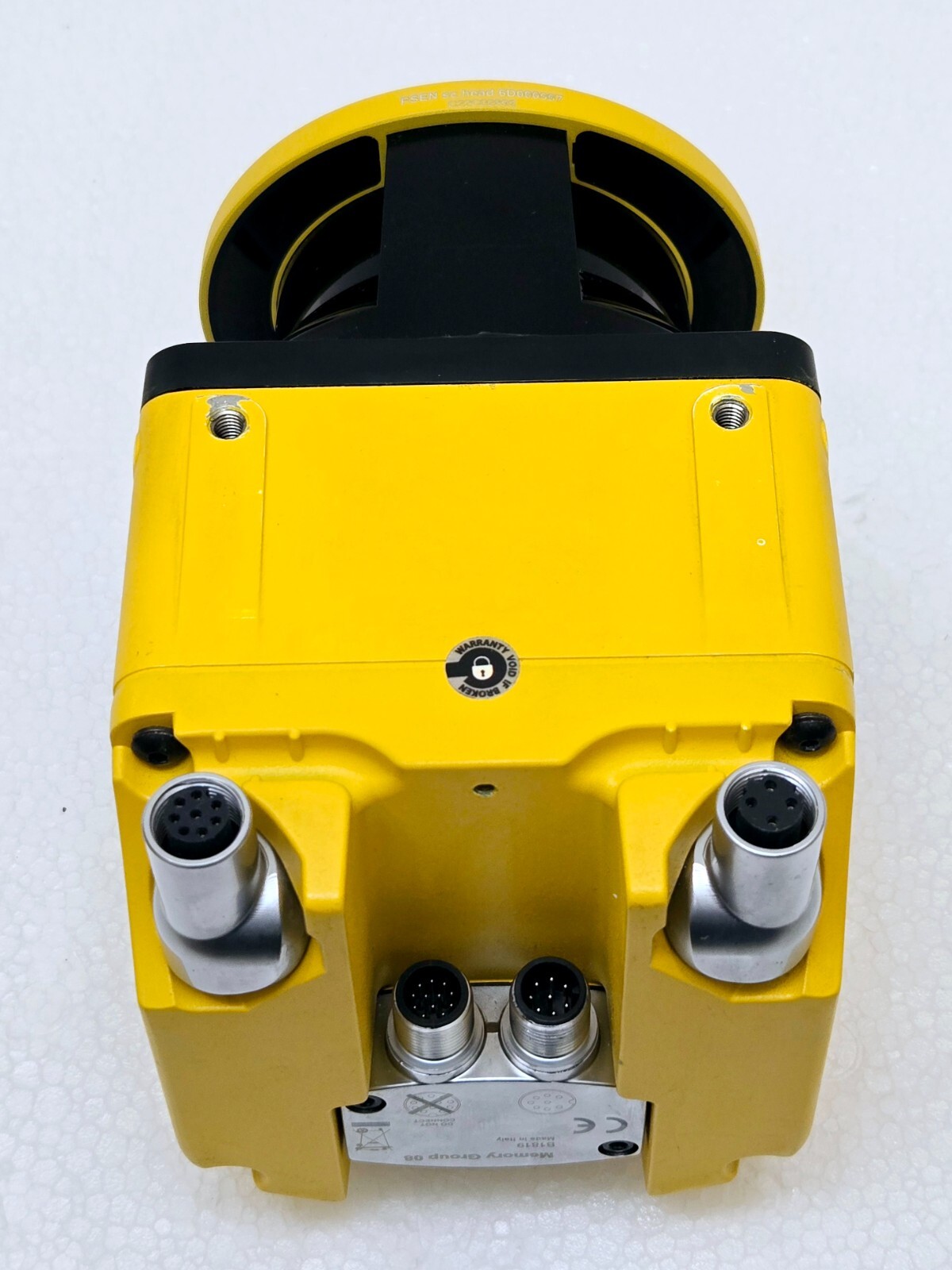

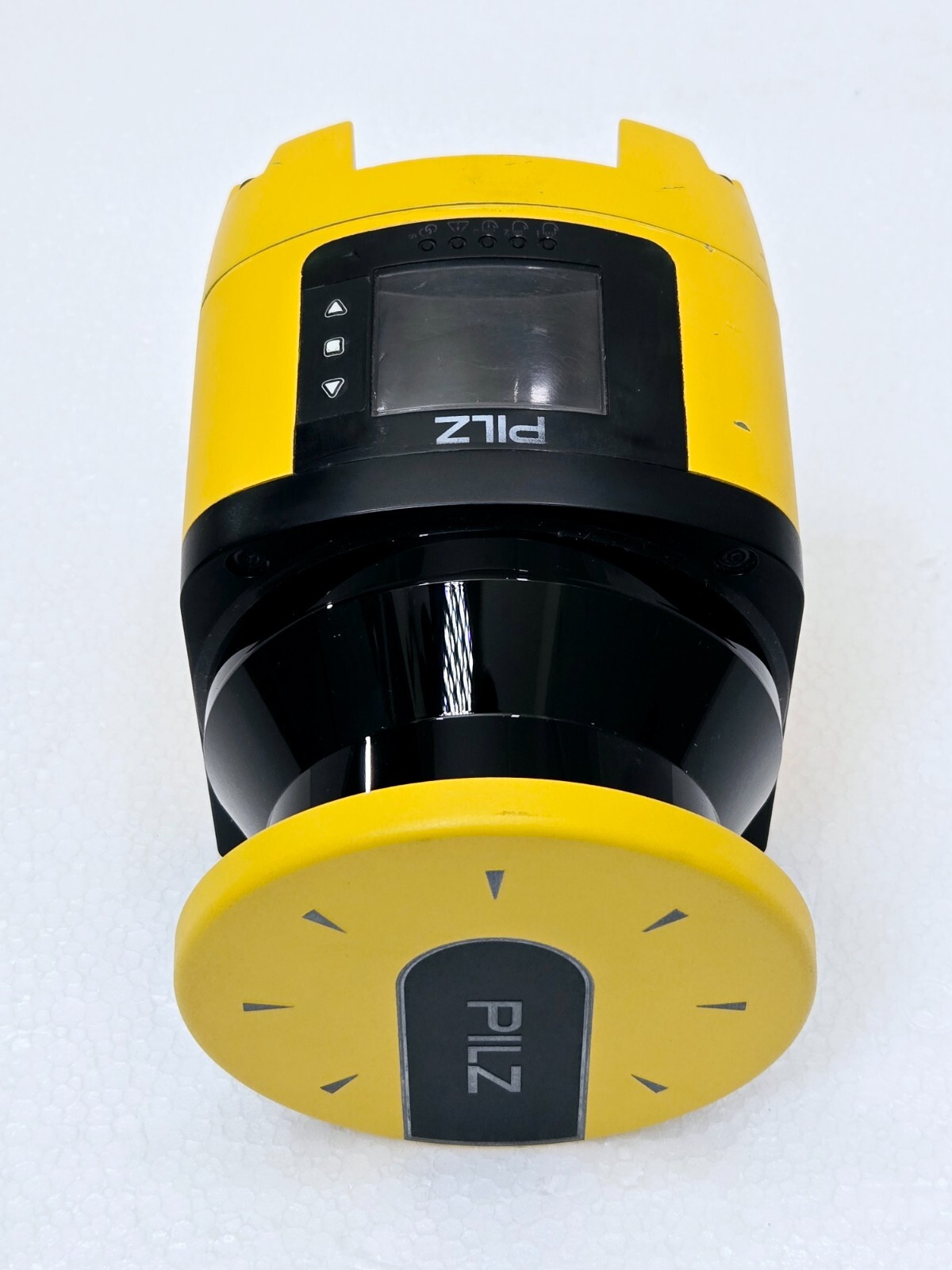

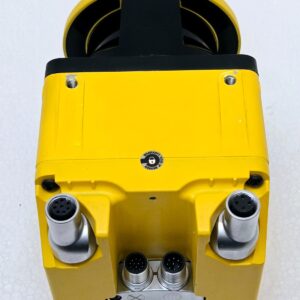

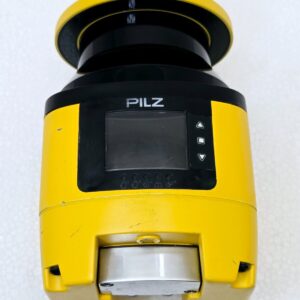

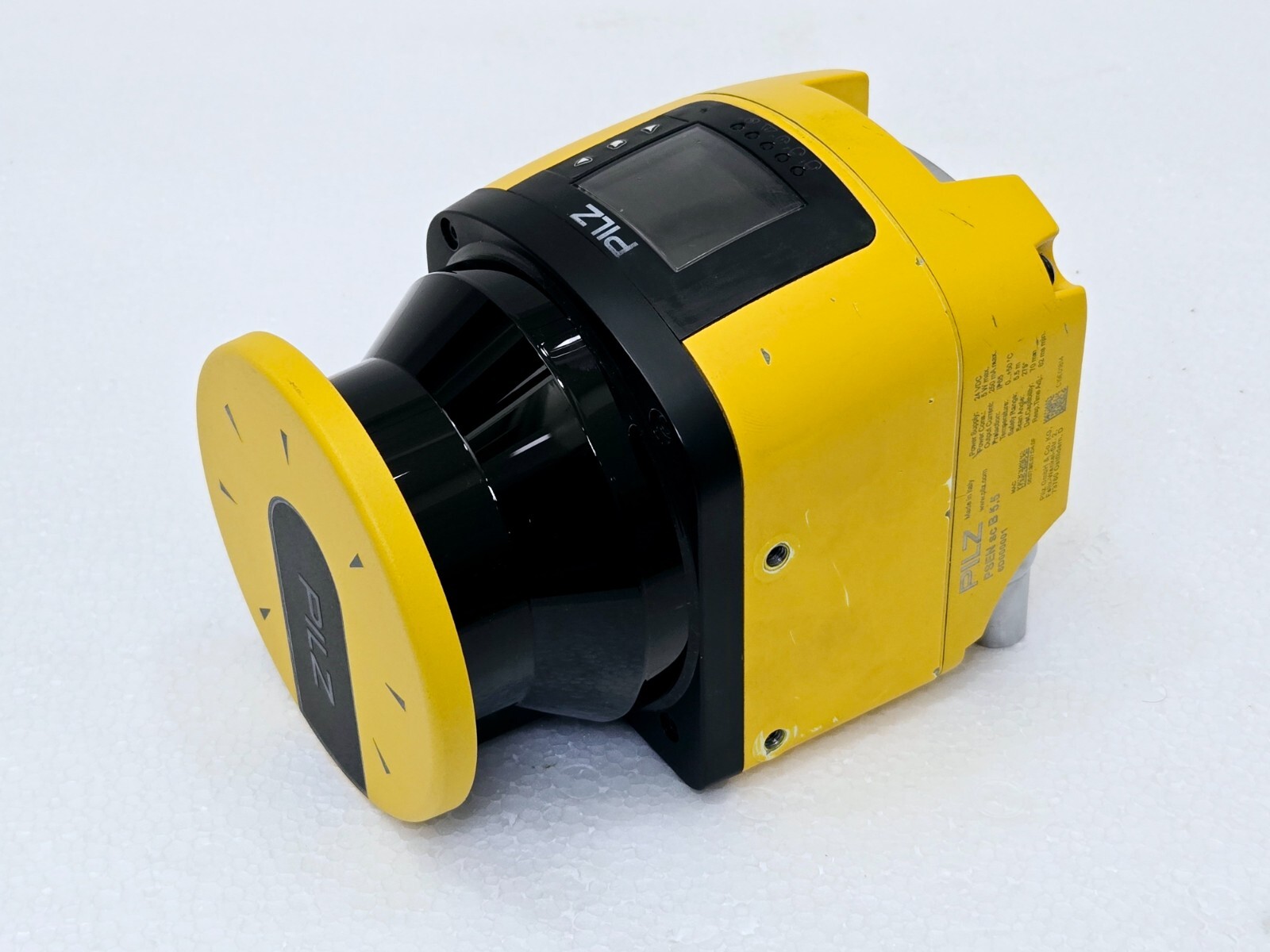

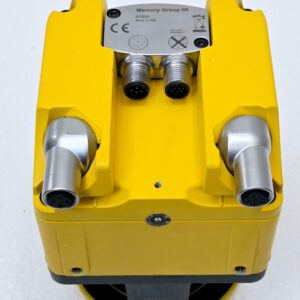

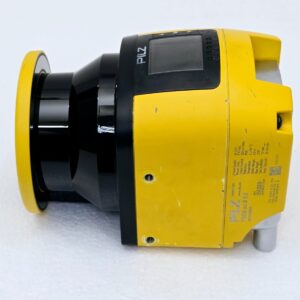

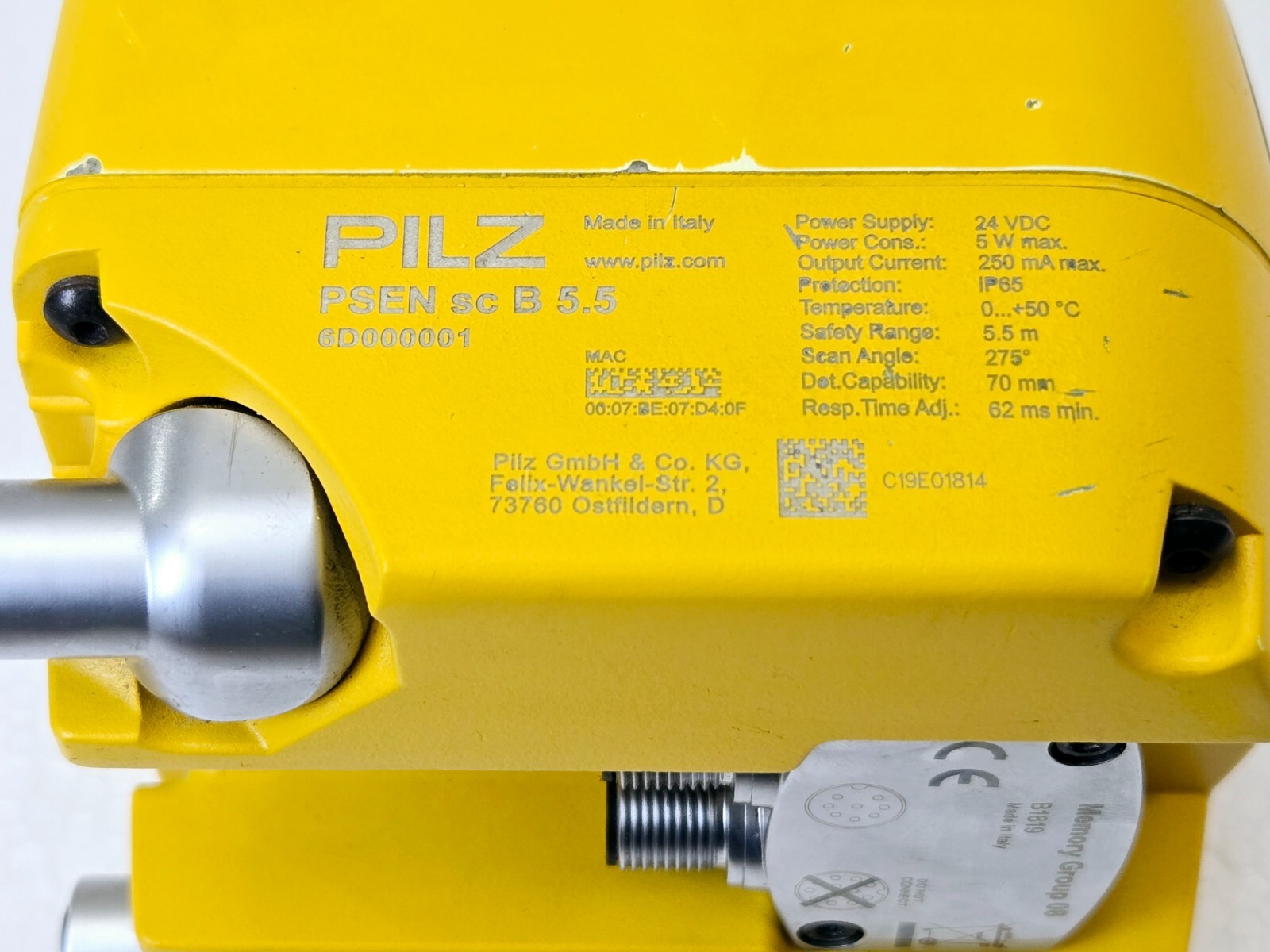

ORIGINAL IMAGES OF THE ACTUAL PRODUCT ARE UPLOADED, WHAT YOU SEE IS WHAT YOU GET

Payment:-

  • Payment must be received within 7 days. If payment isn’t received within 7 days, The listing will be revoked and a Non-Paying Buyer alert will be filed.

  • Packages are usually shipped within 48 hours of payment receipt (Excluding Saturday/Sunday)
  • International buyers, whatever the custom duty or charges if any will be borne by the buyer. As different countries charge Different Custom Duty. Buyer is responsible for Paying all the charges.
  • Please check with your country’s customs office to determine what these additional costs will be prior to buying.
  • If you purchase more than one item from us, They may arrive in separate packages.



Returns :-

  • All items are sold as it is. We accept returns only if the item was not as described in the listing.
  • Our Return rate is well below 1%. Please ask questions. Assumptions can be costly.



We do our best to present accurate, detailed information about every item we sell. If you have any questions, Please contact us before Buying.

If you are happy with our product don’t forget to leave us your feedback. Your feedback is very important to us; if you are unhappy for any reason please contact us.

SOURCE FROM PRODUCT WEBSITE (FOR REFERENCE ONLY*)

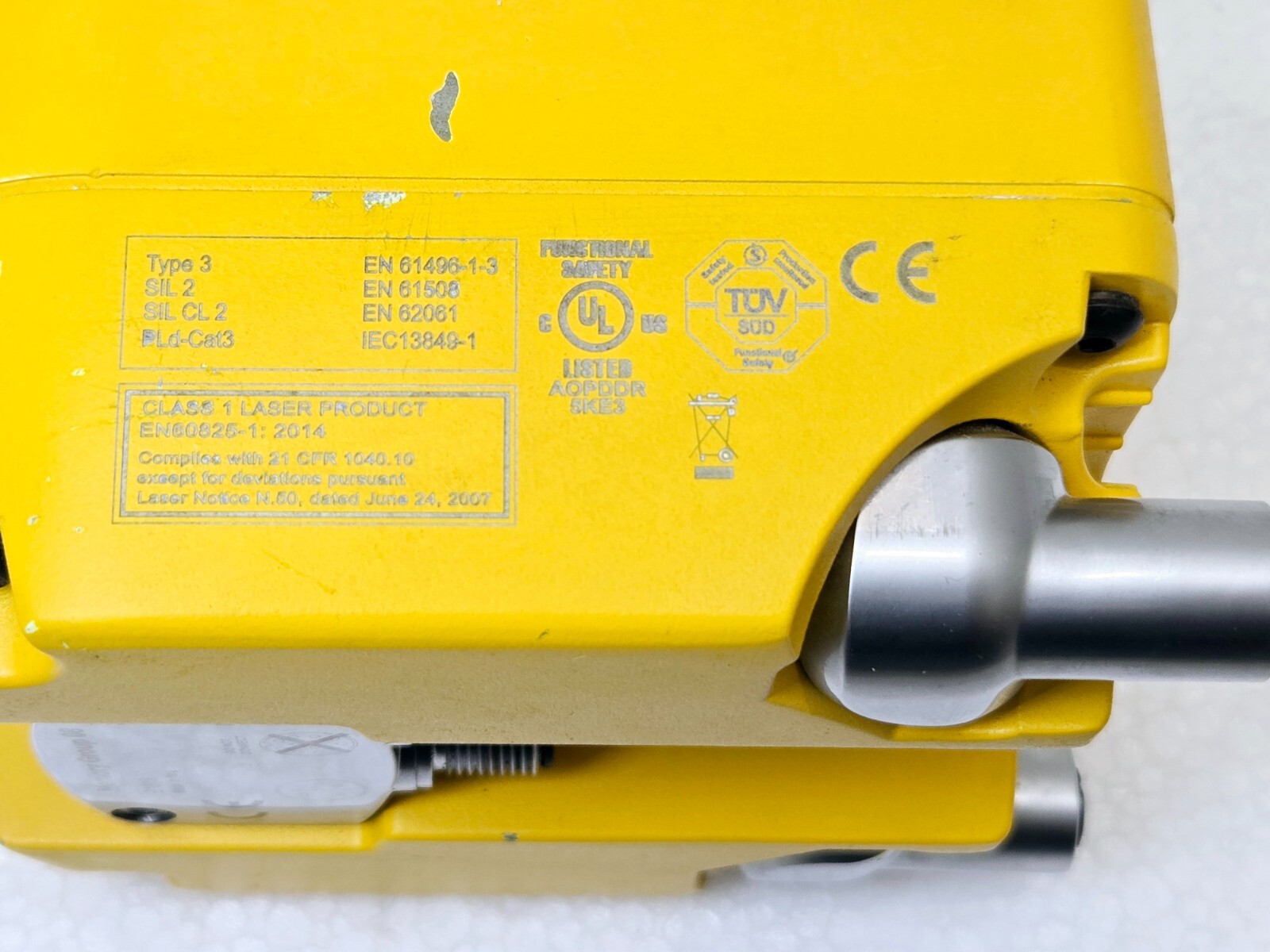

Approval CE
cULus Listed
TÜV
ESPE type 3
2
Product type Basic
Sensor principle optical
Selectable resolutions 70
Operating range warning zone 40
Operating range safety zone 5.5
Number of zone configurations 3


Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 8 W

Used wavelength range 905 nm
Scanning area 275°
Max. opening angle vertical 0.12°
Angular resolution 0.1°

Signal level at input at 0 < 5 V
DC voltage at input 24 V

Number of OSSD outputs 2
Current “0” S/C O PSENscan < 700 µA

Connector type ETHERNET int. M12x1, 4-pin, D-code
Ethernet transmission rate 100 MBit/s

Number of Ethernet interfaces 1

Ambient temperature 0 – 50 °C
Humidity rating Max. 95 %
Condensation permitted? Not permitted
Vibration to standard … EN 60068-2-6
Acc. shock to standard1 10g
Protection type, housing

Reaction time 62 ms
Rotation time 30

Connection type M12, 8-pin male
Housing material Aluminium
Housing material upper part PC
Material front screen PMMA
Height dimension 152 mm
Width dimension 102 mm
Depth dimension 112.5 mm
Net weight 1530 g
Gross weight 2140 g


Payment must be received within 7 days. If payment isn’t received within 7 days, The listing will be revoked and a Non-Paying Buyer alert will be filed. International buyers, whatever the custom duty or charges if any will be borne by the buyer. As different countries charge Different Custom Duty. Buyer is responsible for Paying all the charges. Please check with your country’s customs office to determine what these additional costs will be prior to buying. All items are sold as it is. We accept returns only if the item was not as described in the listing. We do our best to present accurate, detailed information about every item we sell. If you have any questions, Please contact us before Buying. If you are happy with our product don’t forget to leave us your feedback. Your feedback is ver


Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Reviews

There are no reviews yet.

Be the first to review “PILZ PSEN sc B5.5 6D000001 Safety Laser Scanner PSENscan Scan Angle 275°”

Your email address will not be published. Required fields are marked

PILZ PSEN sc B5.5 6D000001 Safety Laser Scanner PSENscan Scan Angle 275°

$1,890.49
