CNP CDL2-13 Vertical Multistage Pump CDL 2-13 New #2
This product data sheet is originally written in English.
BRAND:CNP
MODEL: CDL2-13

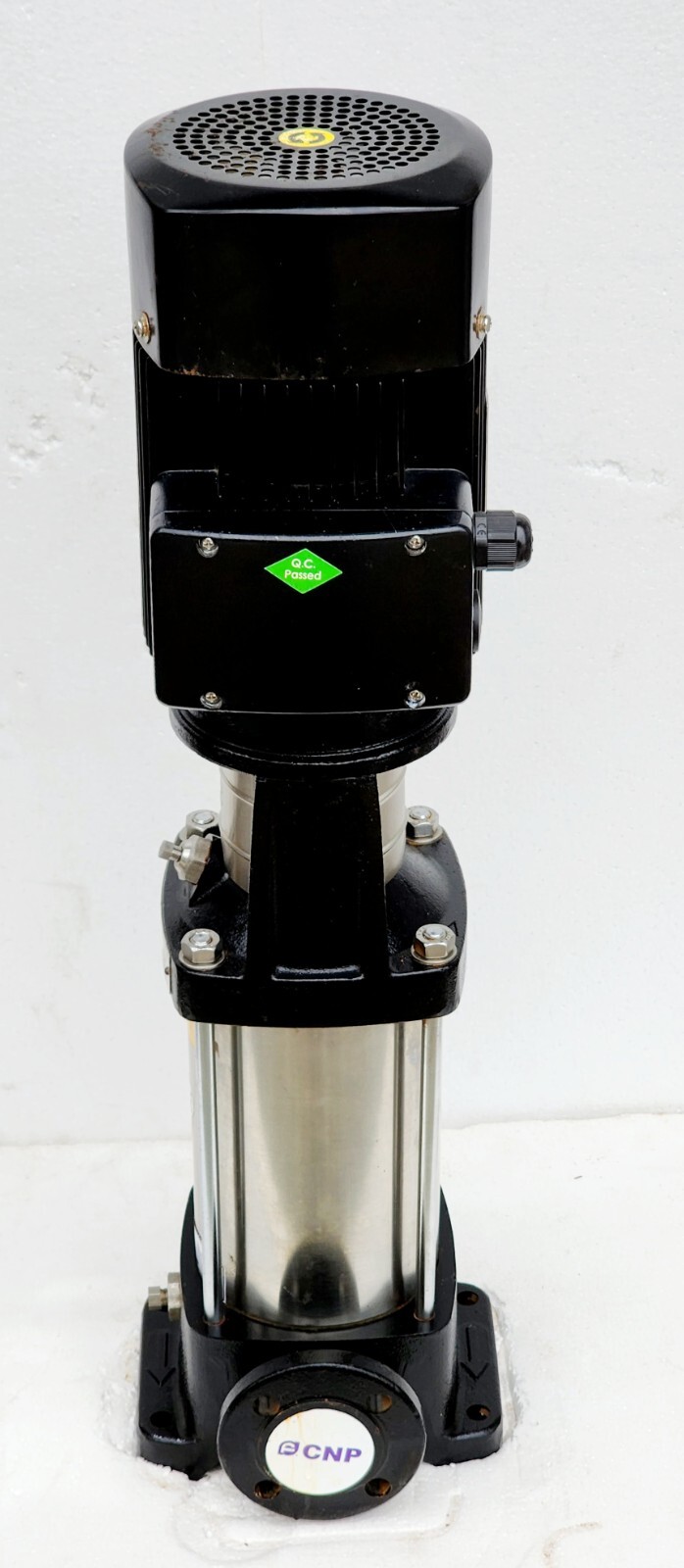

Vertical Multistage Pump CDL 2-13 New
Flow:
2 m³/h
Head:
98 m
Efficiency:
42.5 %
Speed:
2900 rpm
Number of stages:
13
technology
Pump rotator speed:
2900
Nameplate standards:
CE
Pump version:
2
Material
Impeller:
304
Rubber code:
P
Inlet&outlet chamber:
304
Material Code:
S
Installation
Connection Code:
F
Maximum Pressure/Temperature (high temperature):
25 bar / 120 ℃
Maximum Pressure/Temperature (low temperature):
25 bar / -15 ℃
Flange Standard:
DIN
Pressure Class:
PN25
Inlet & outlet:
DN25
Medium
Medium Temperature （normal temperature）:
-15℃～+70℃
Medium Temperature （high temperature）:
-15℃～+120℃
Maximum Environment Temperature:
40℃
Structure dimension
Expolded view:
CDLF1-4exploded view

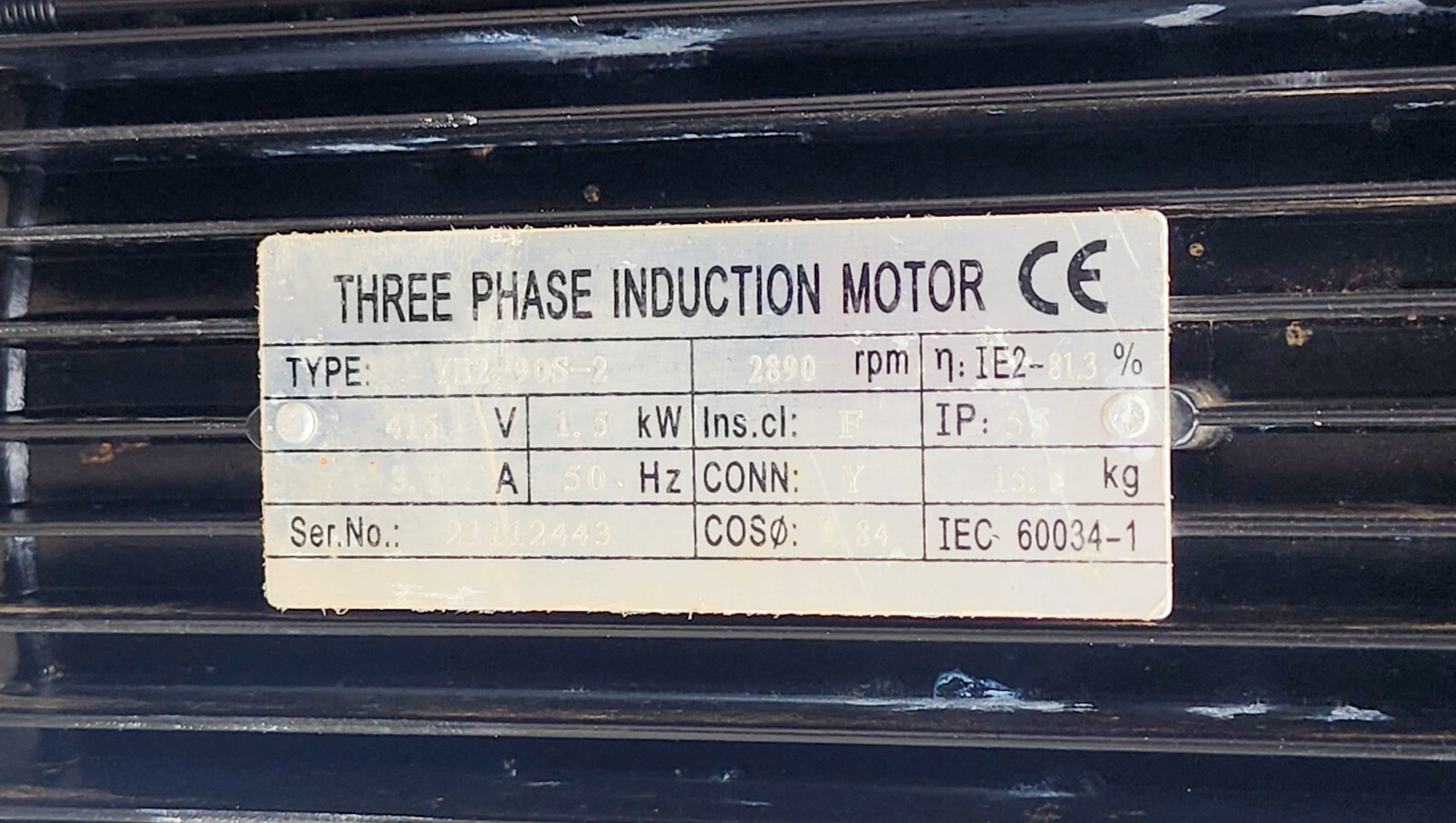

Motor
Number of Motor Phase:
Three Phase
Protection Class:
IP55
Insulation Class:
F
Motor Power:
1.5KW
Power Frequency:
50HZ
Rated Voltage (V):
415 V
Rated Current (A):
3.2 A
Energy Efficiency Level:
IE3

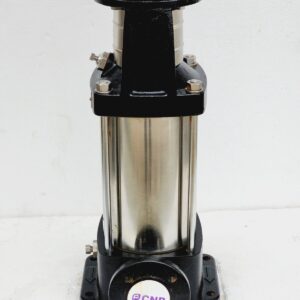

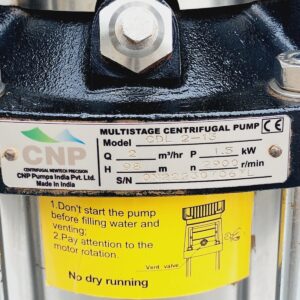

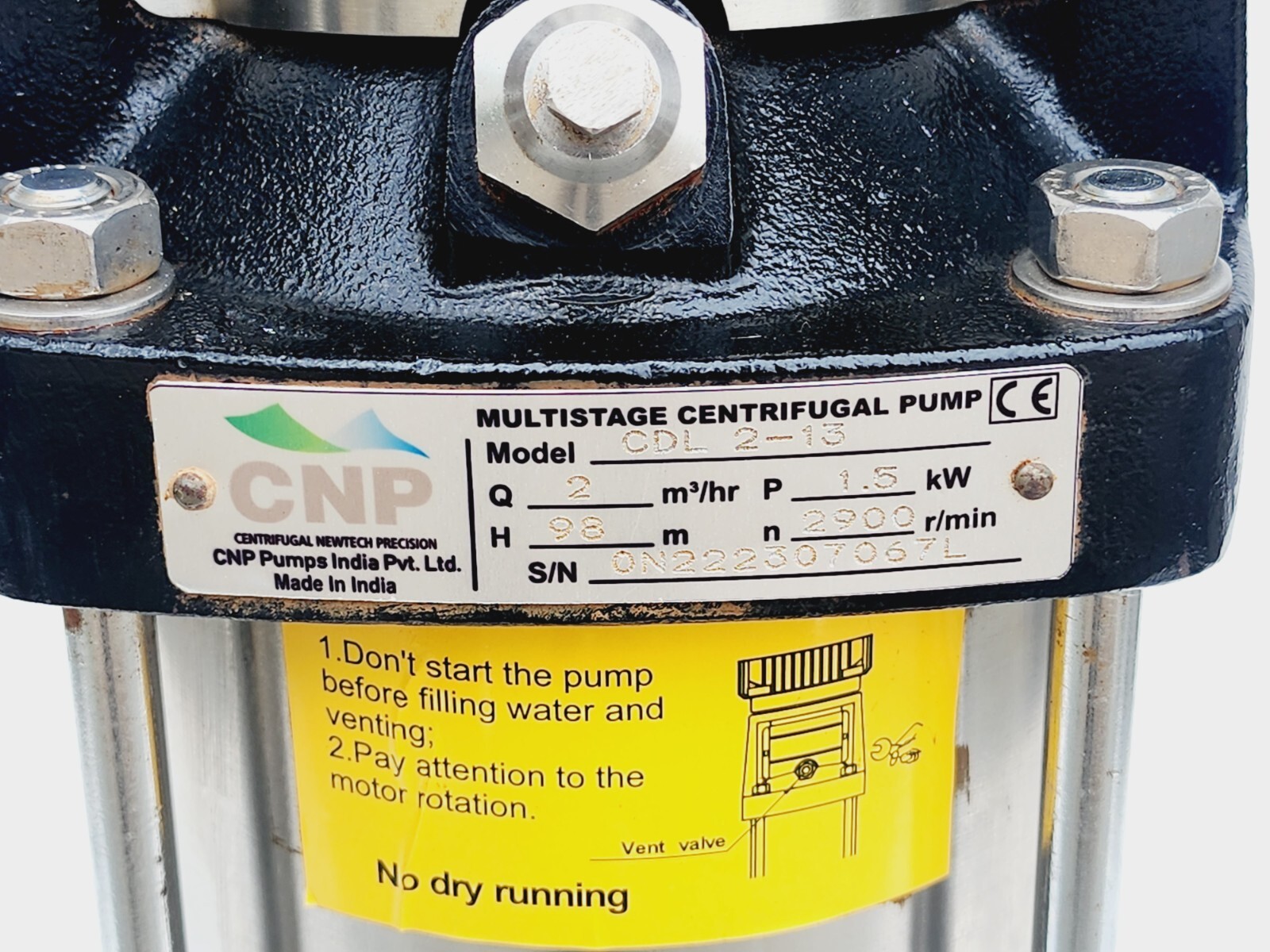

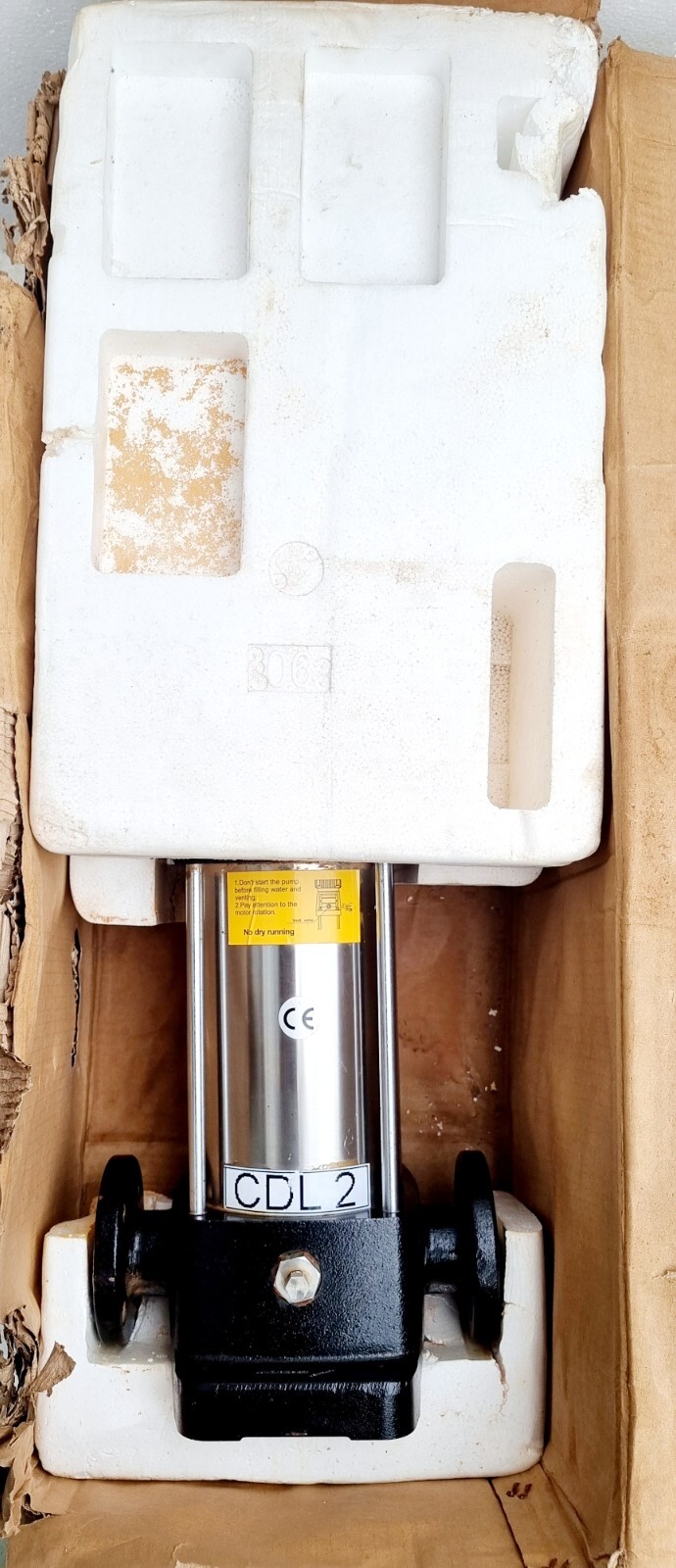

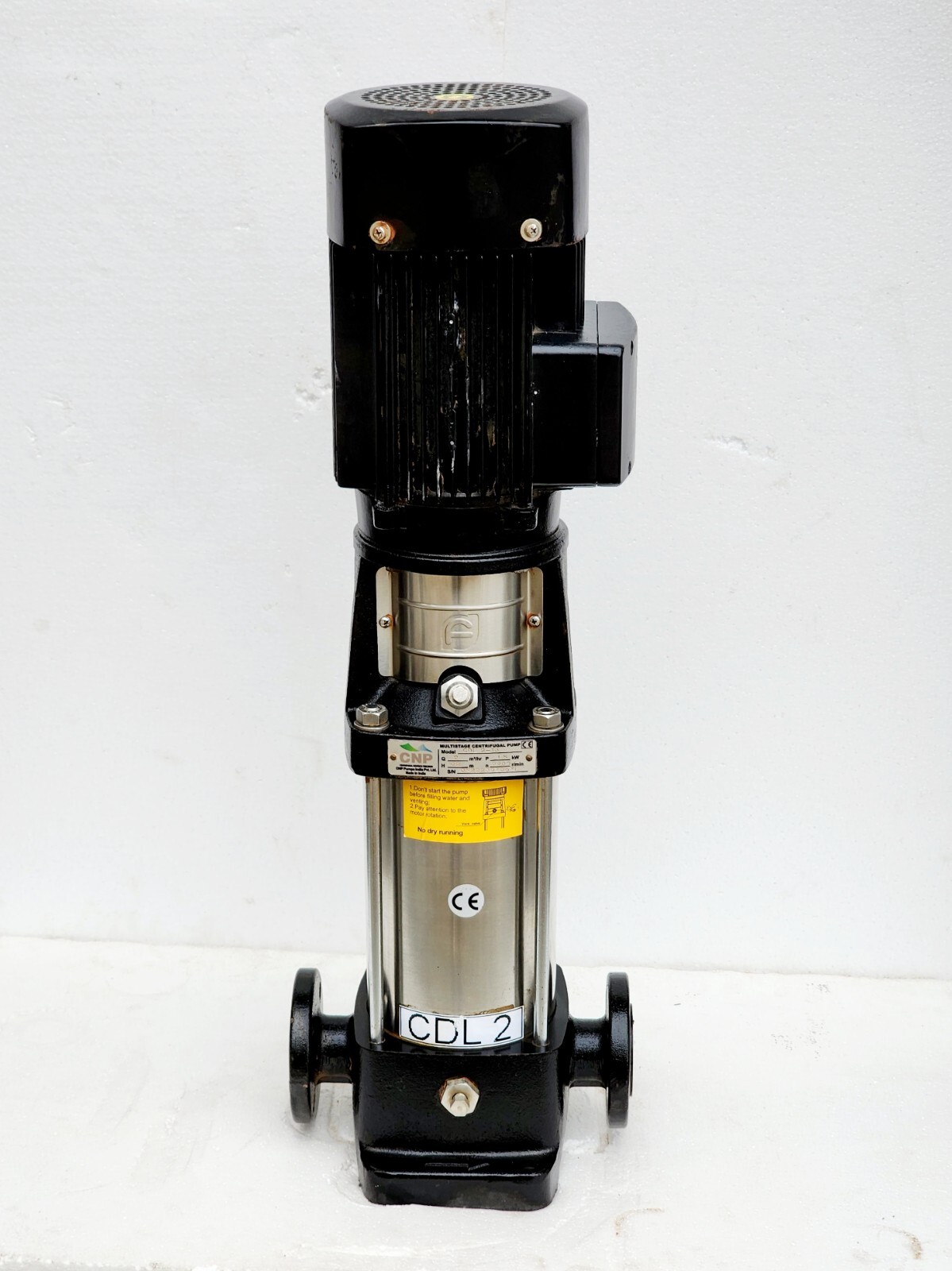

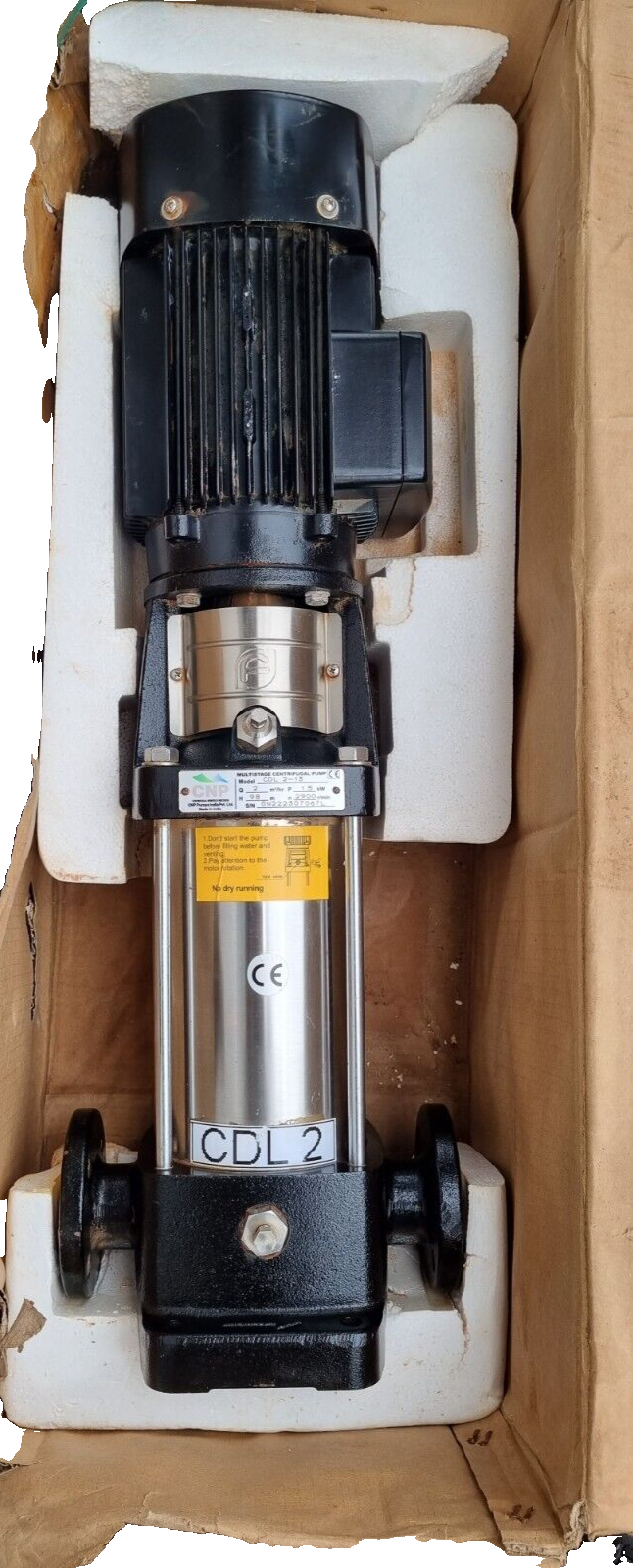

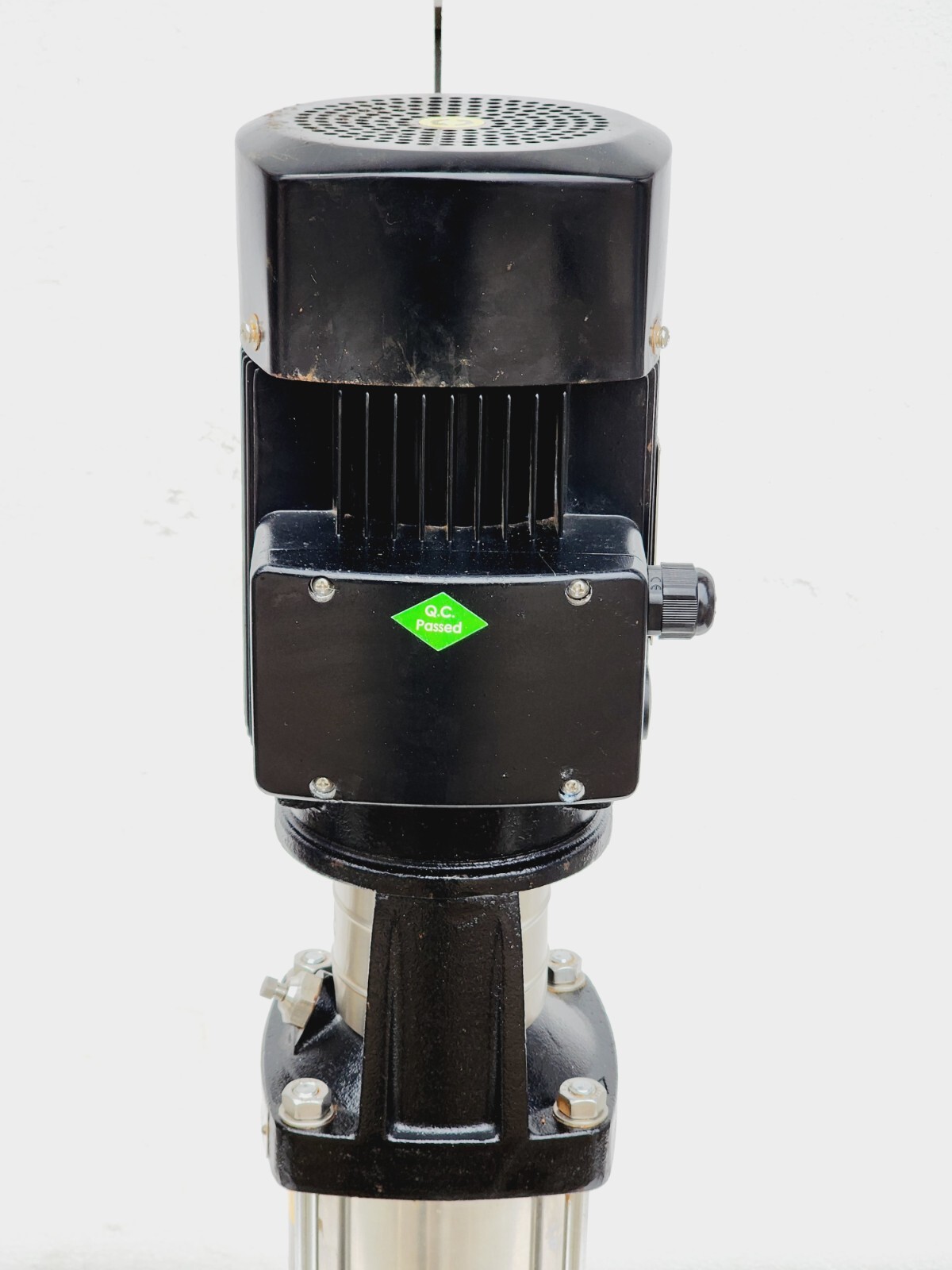

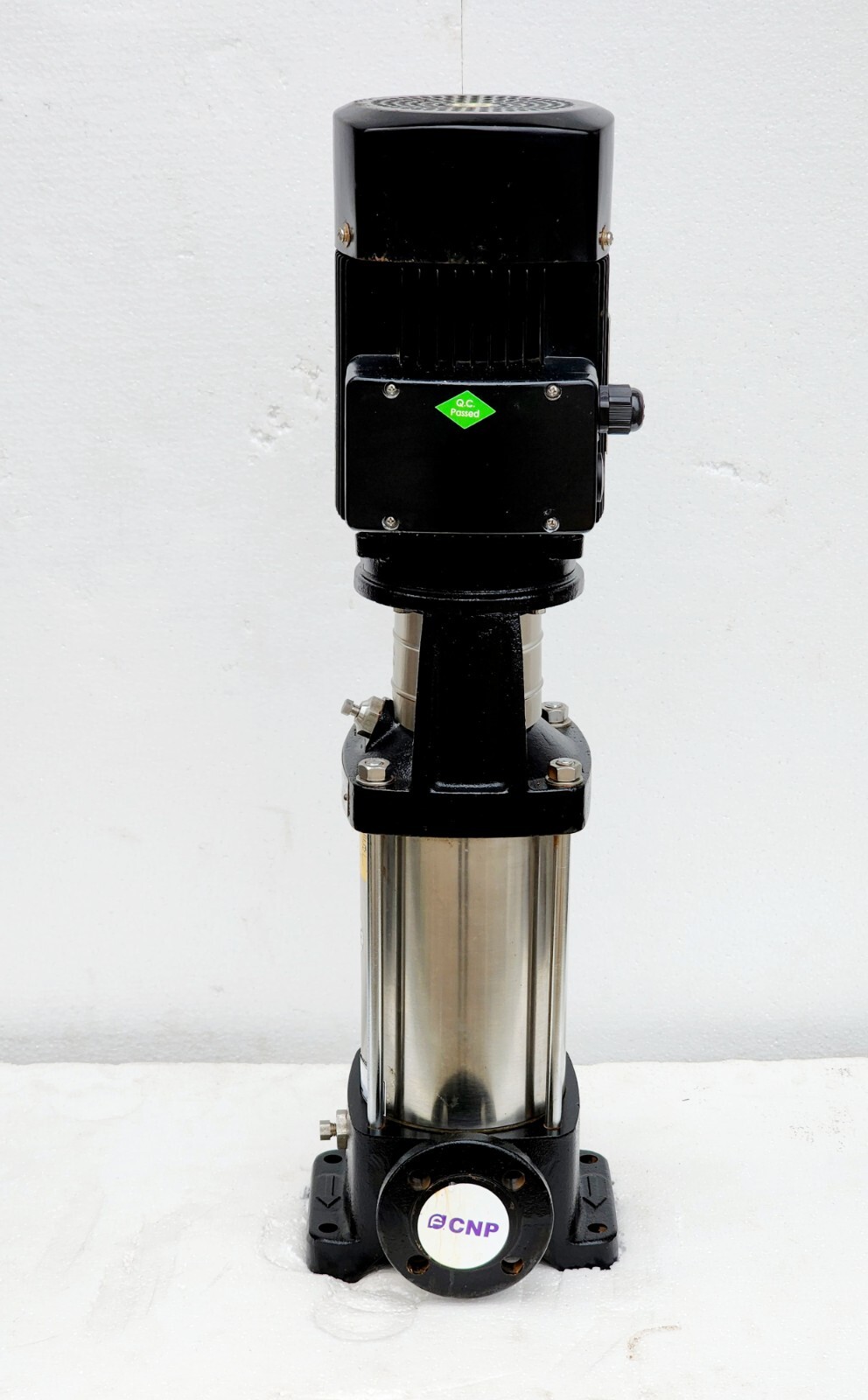

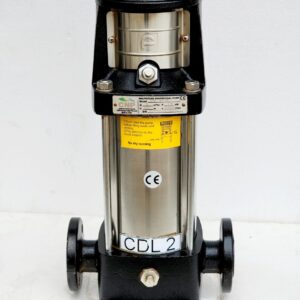

ORIGINAL IMAGES OF THE ACTUAL PRODUCT ARE UPLOADED, WHAT YOU SEE IS WHAT YOU GET
