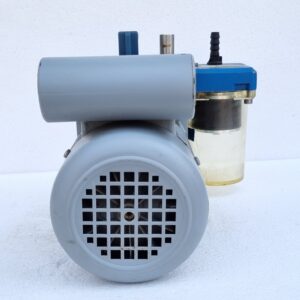

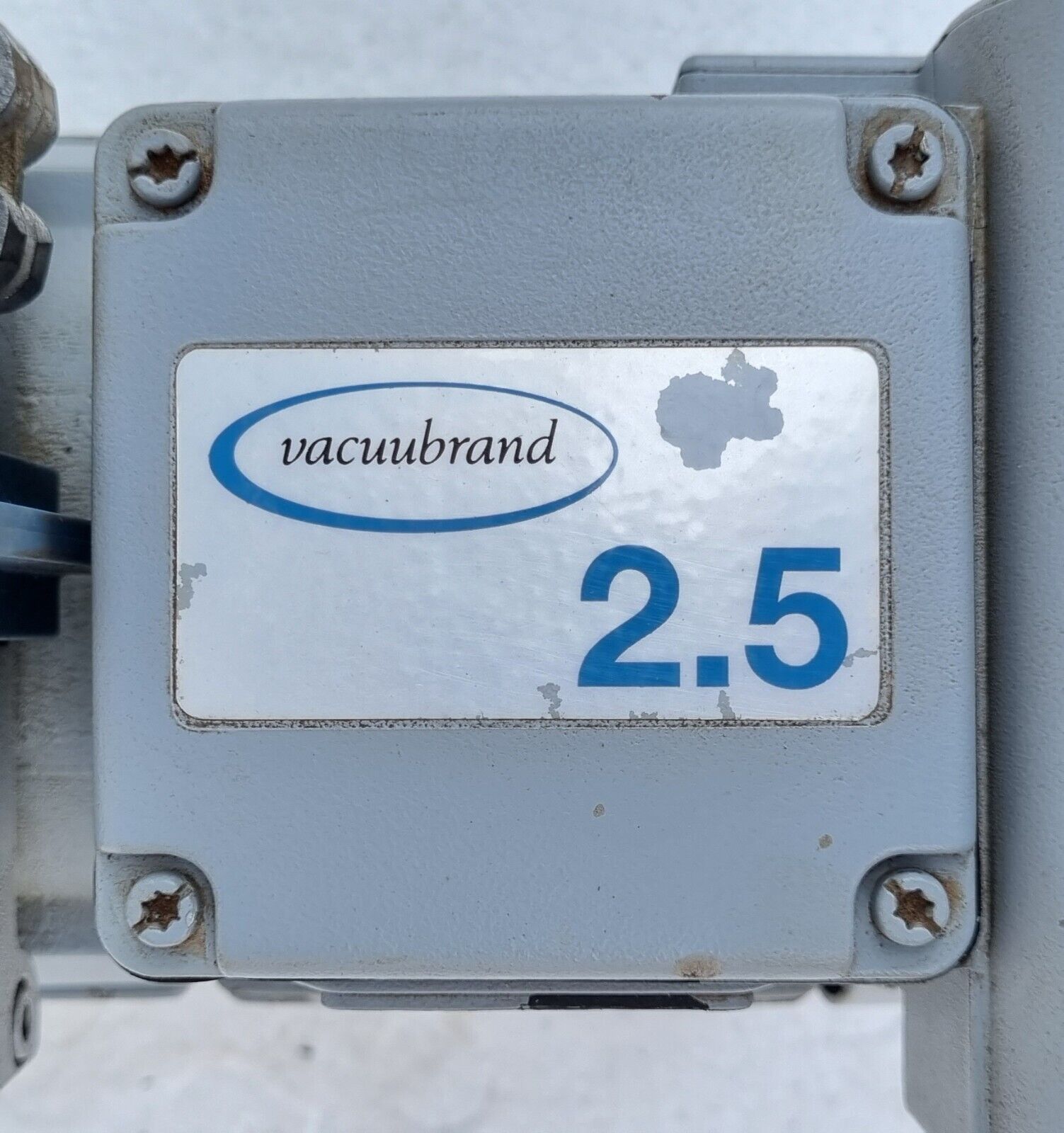

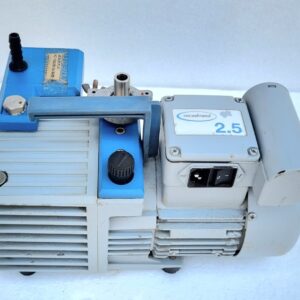

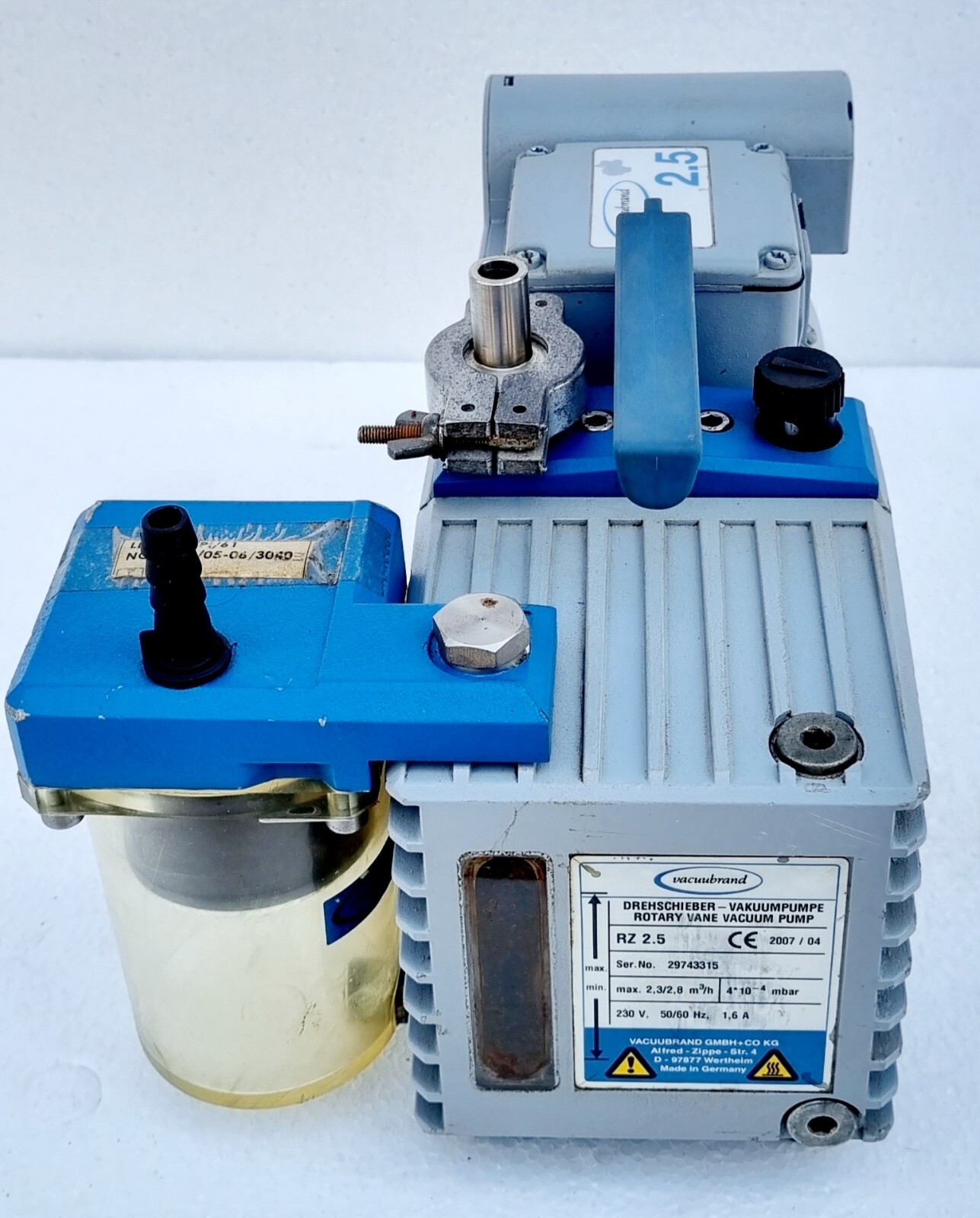

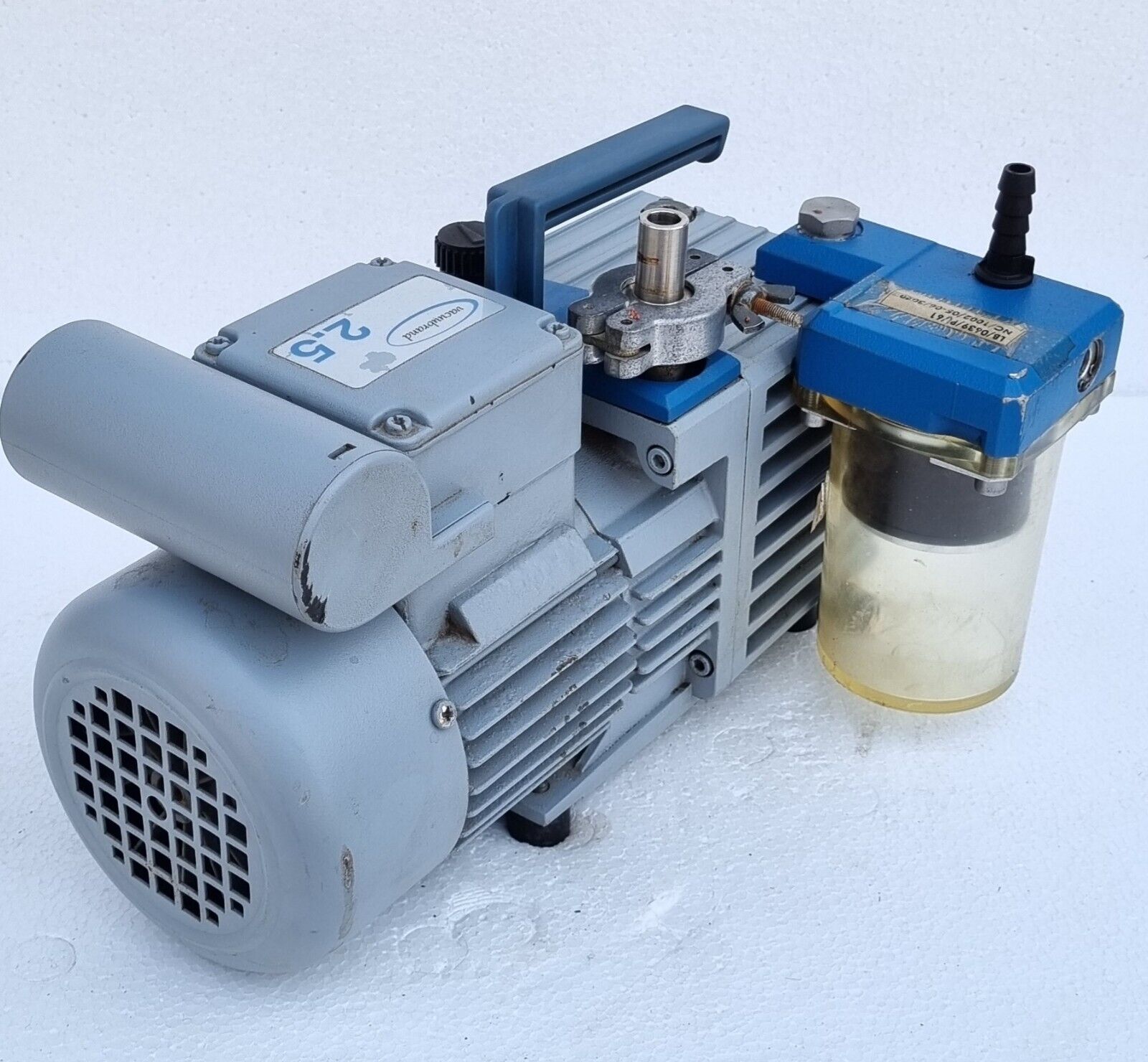

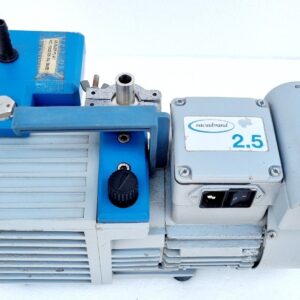

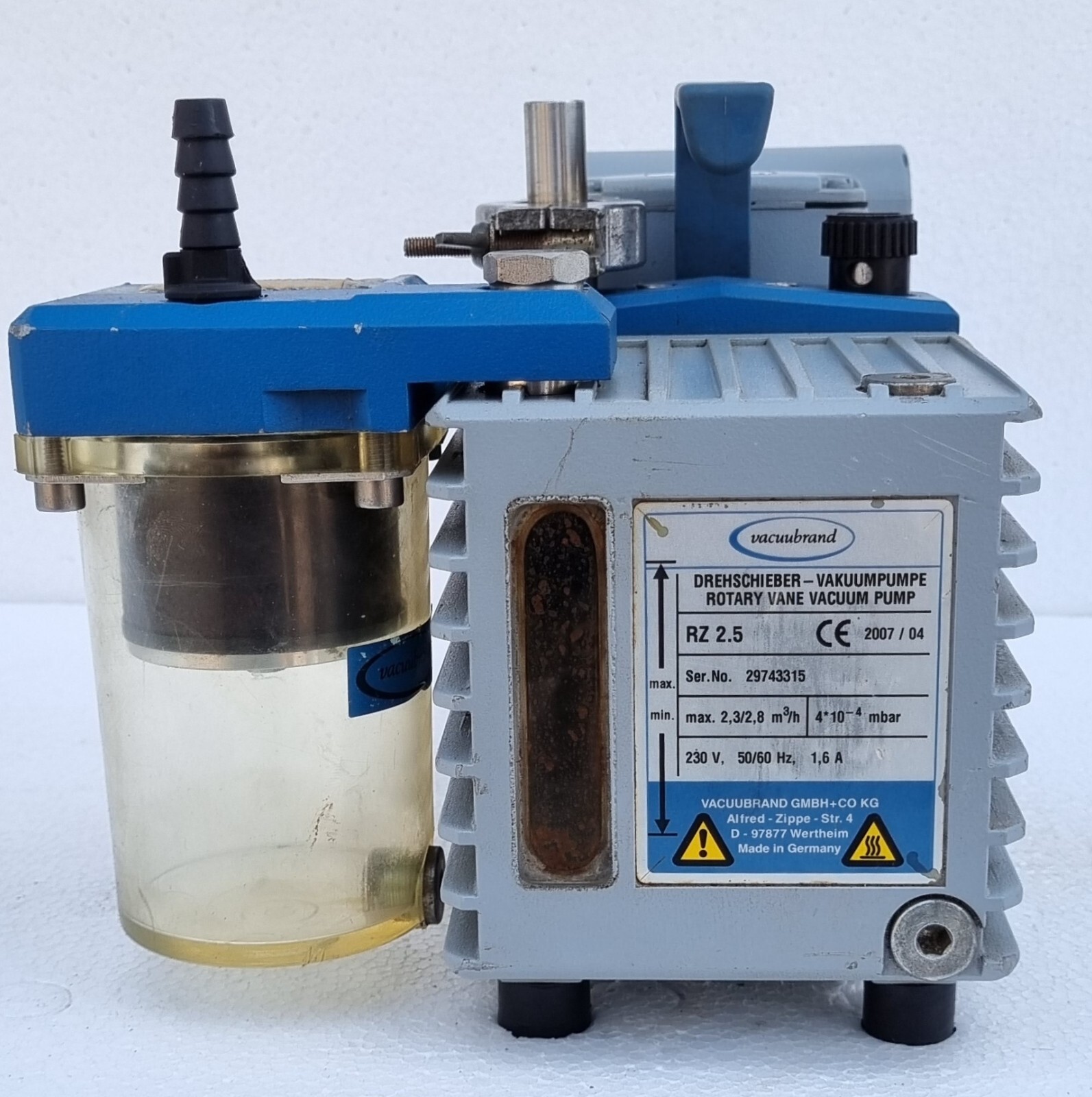

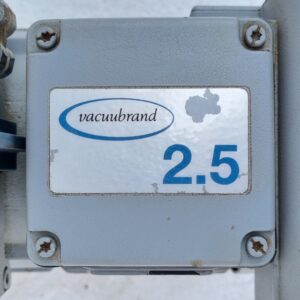

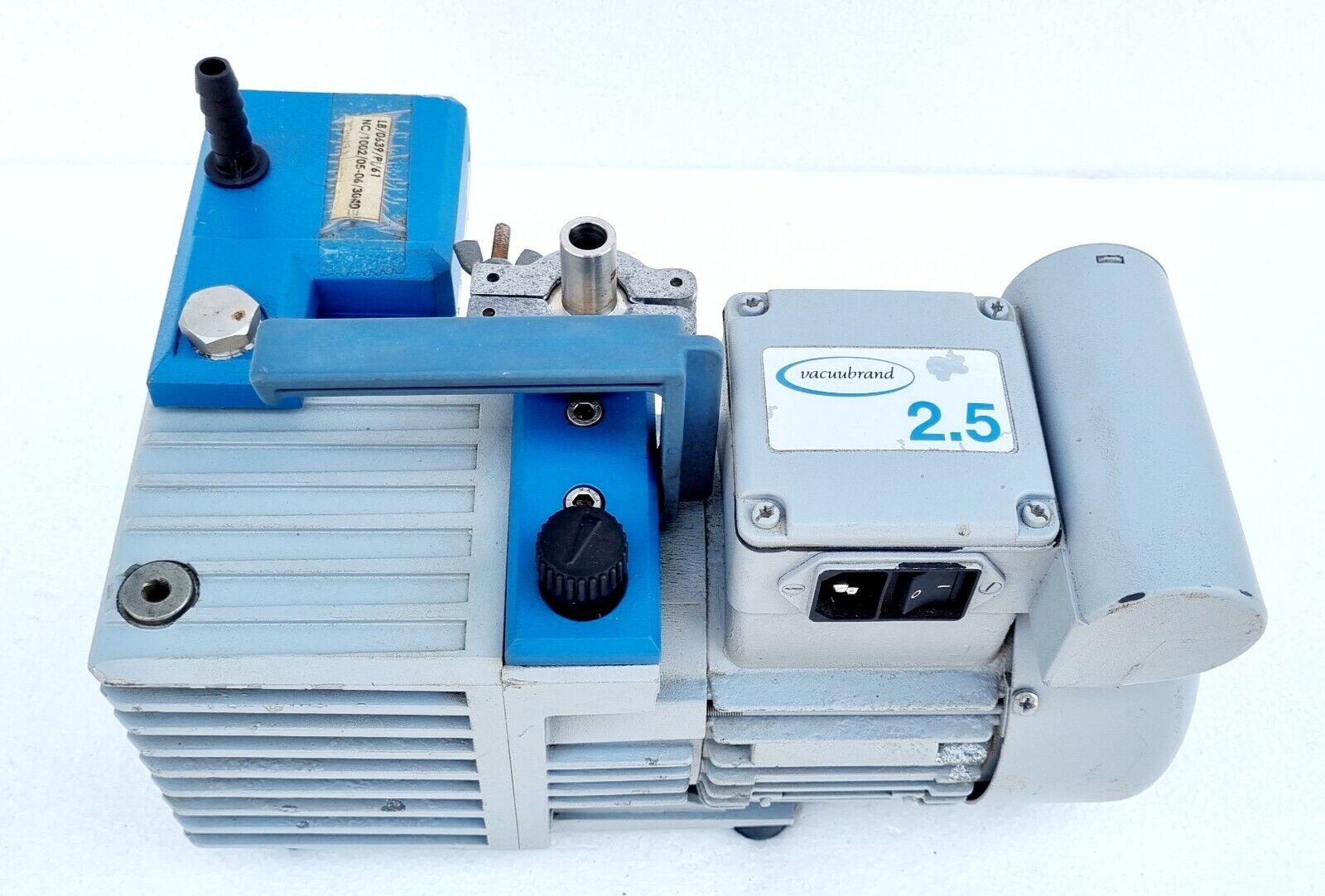

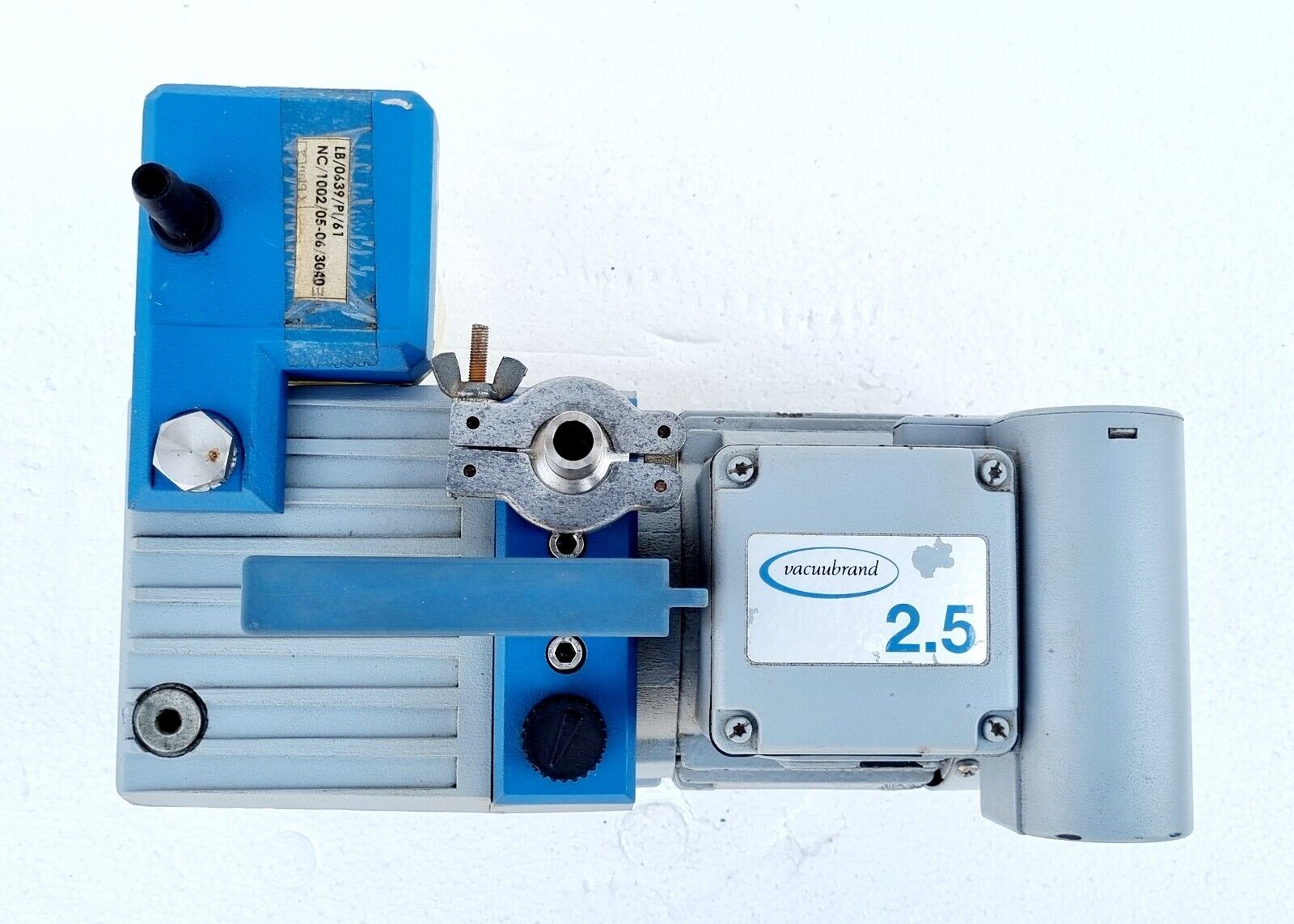

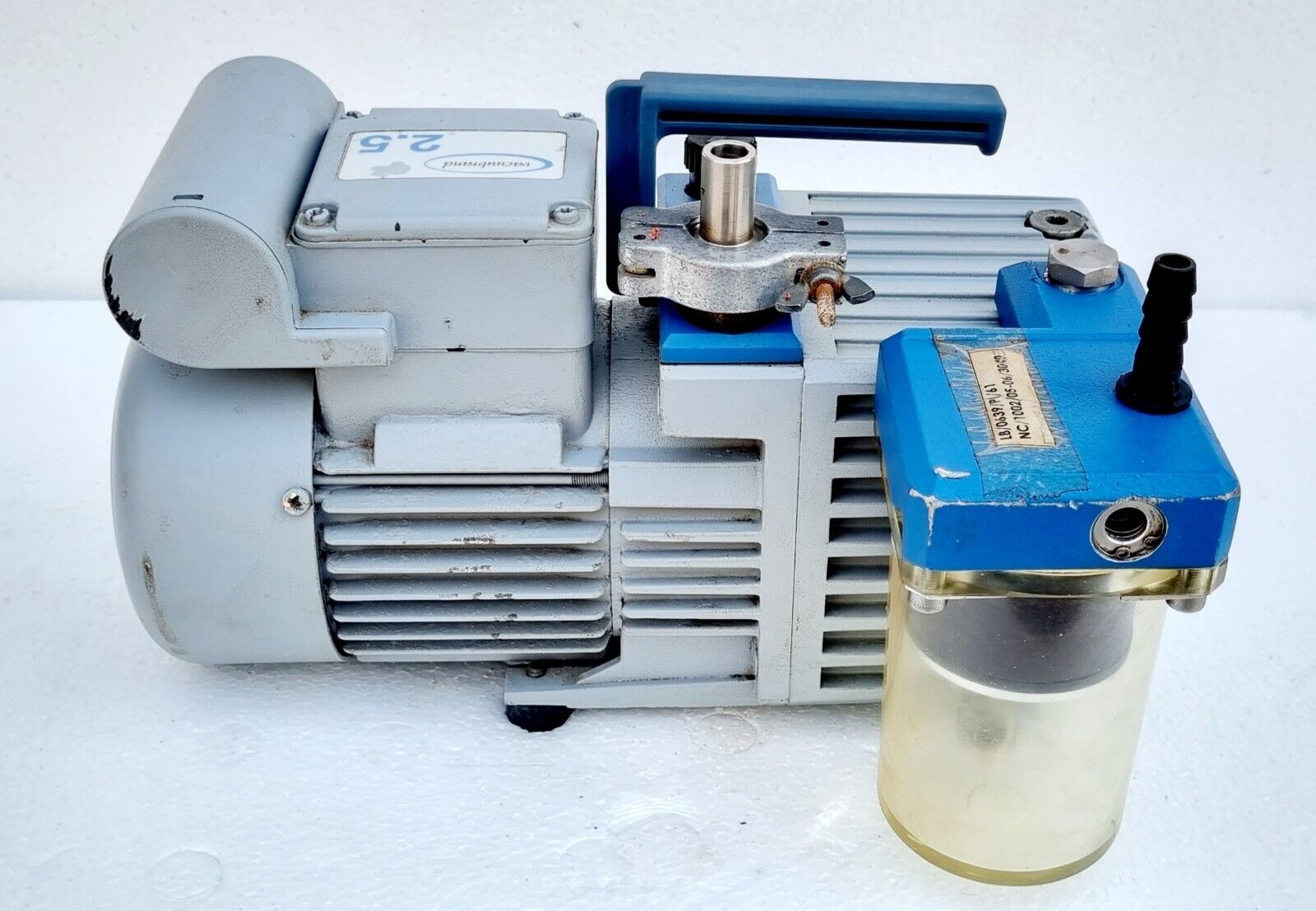

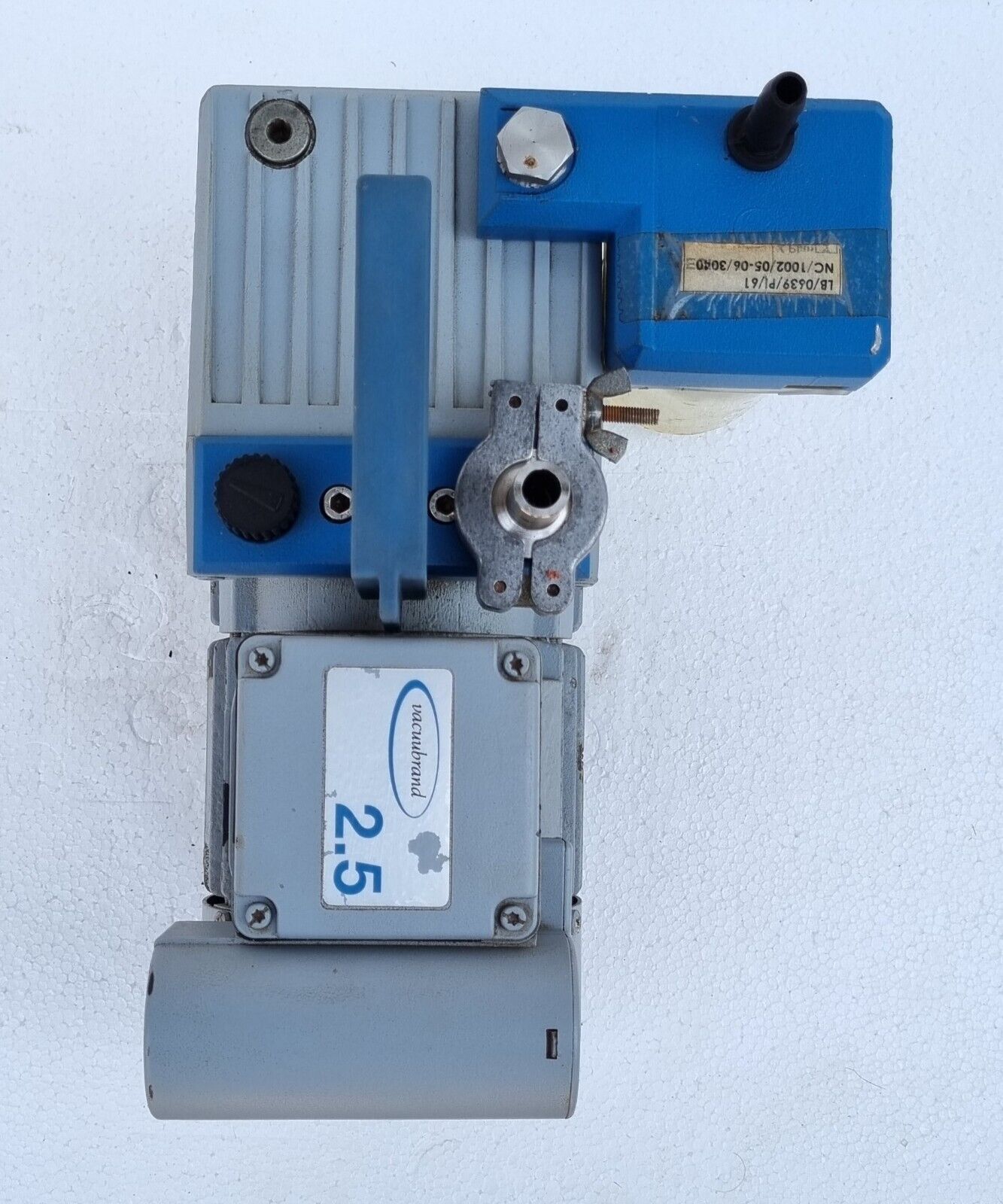

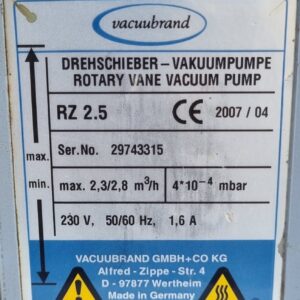

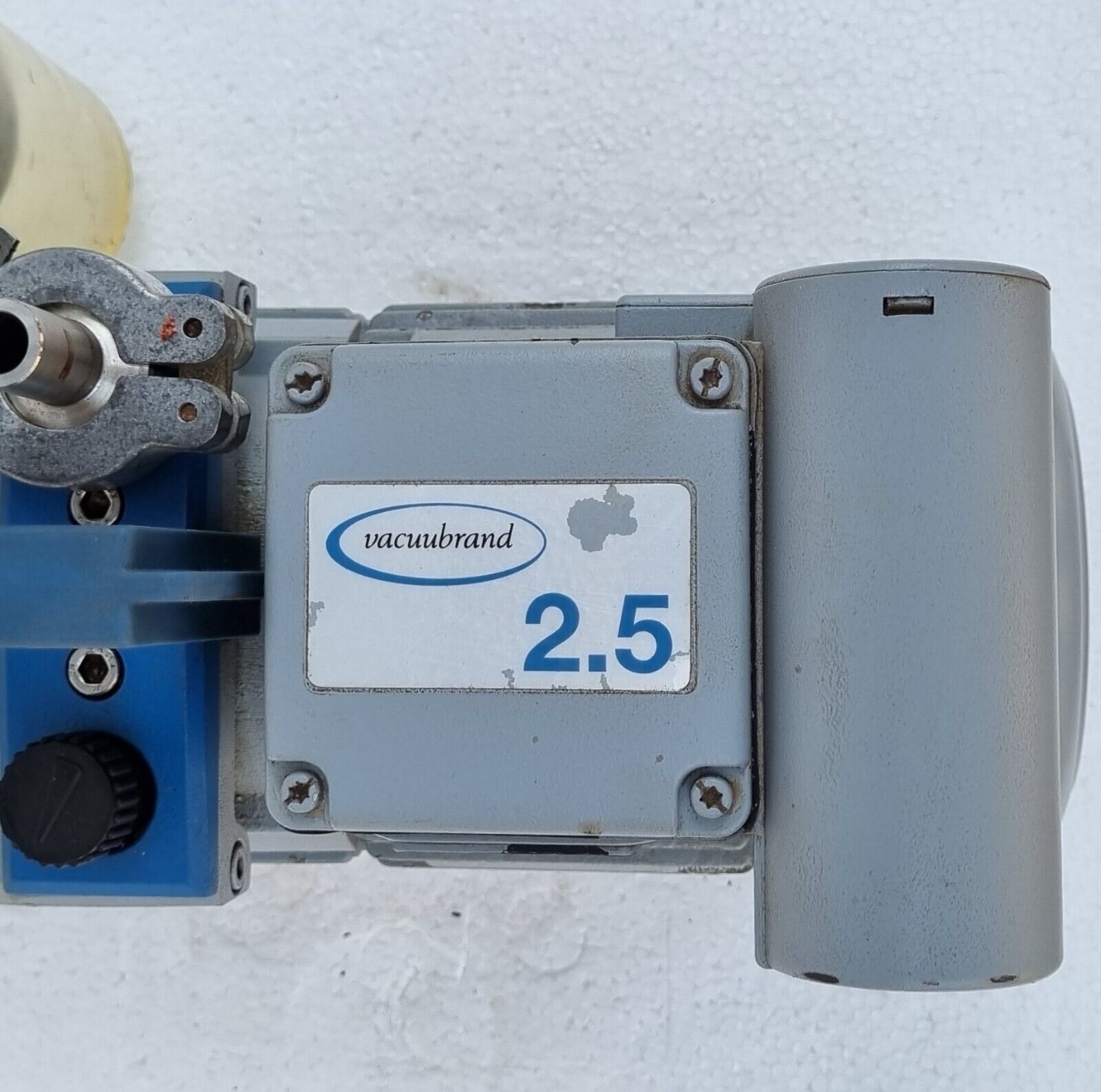

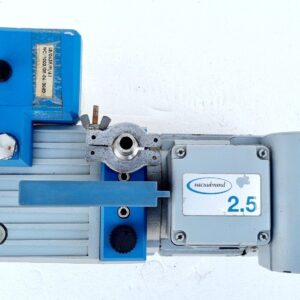

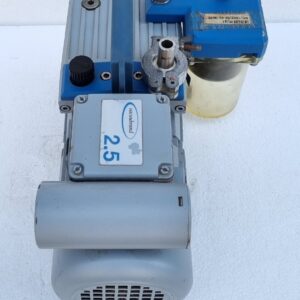

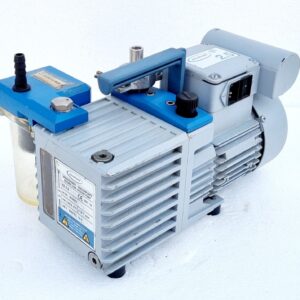

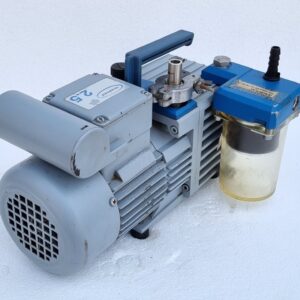

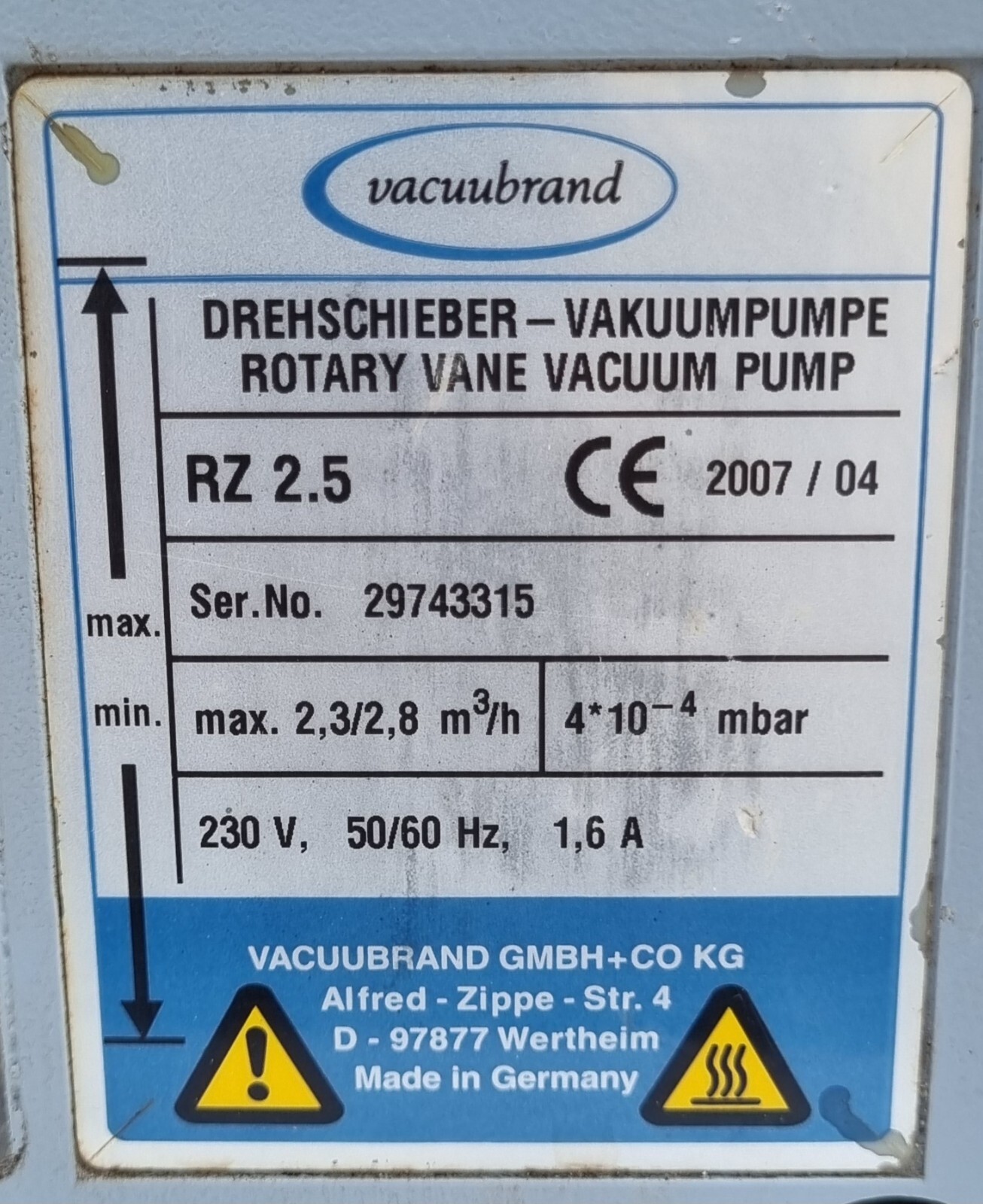

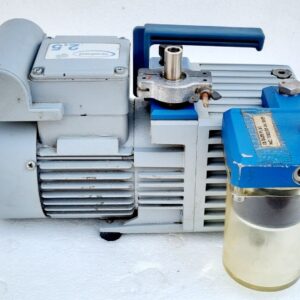

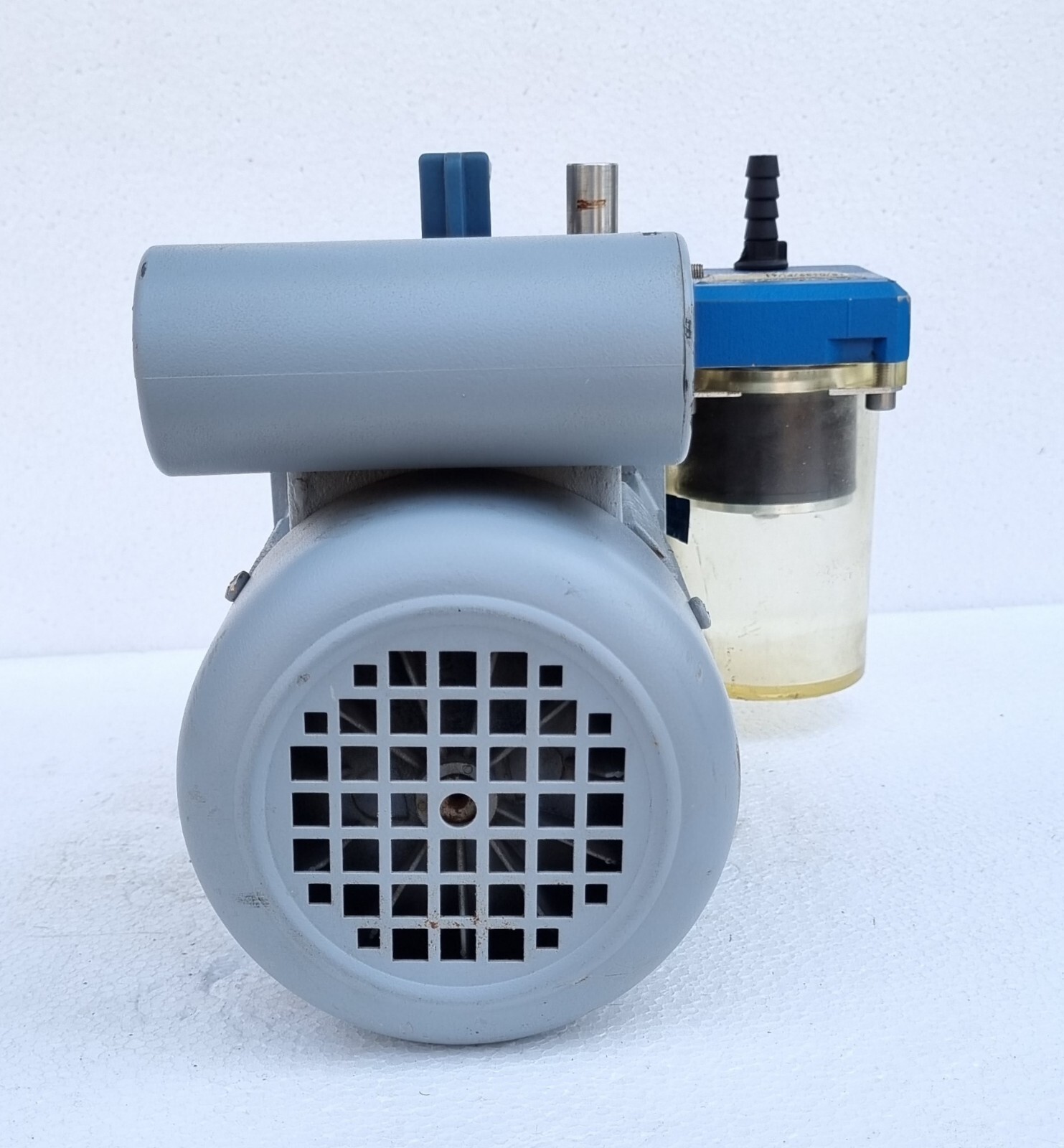

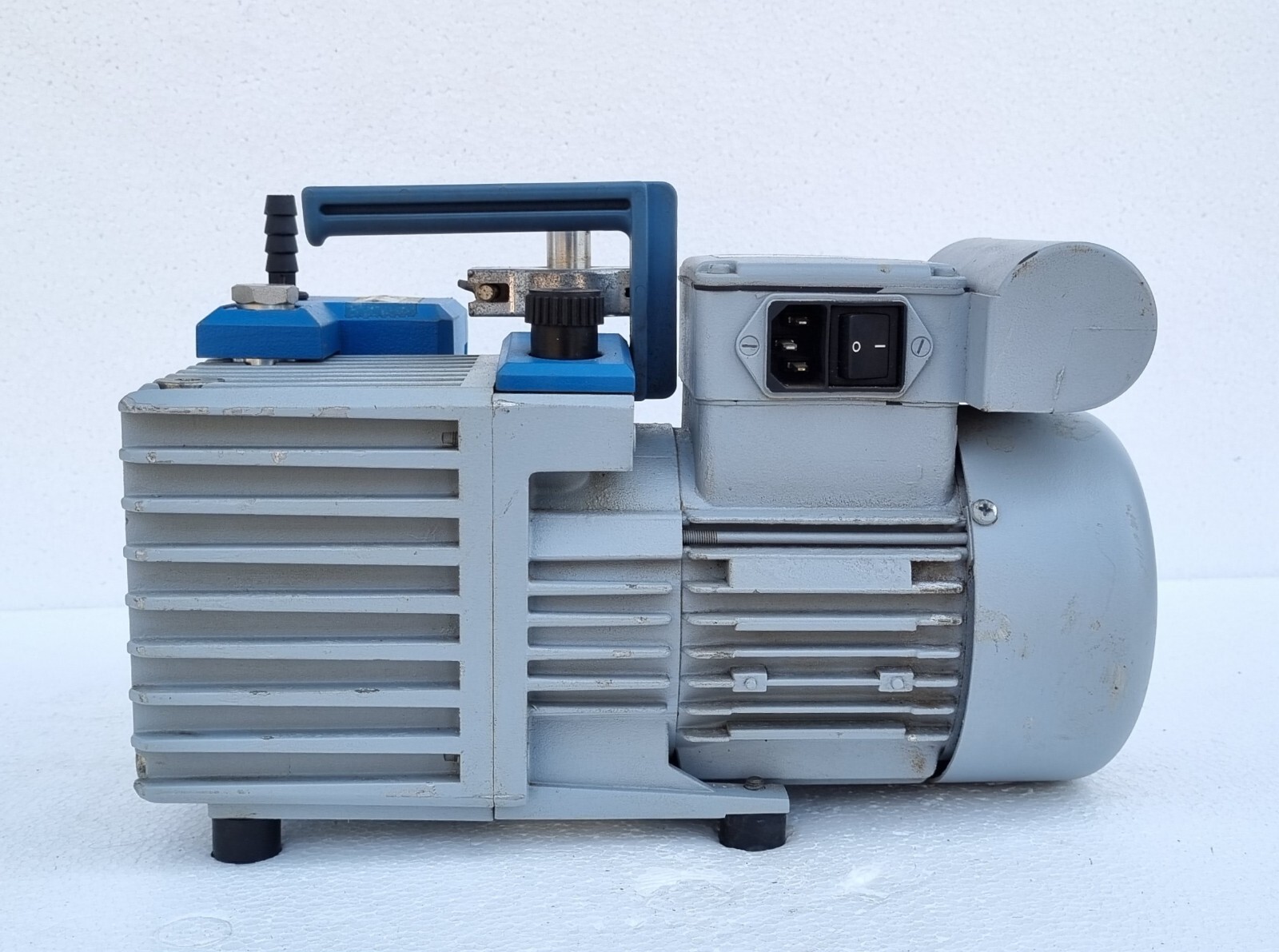

RZ 2.5Rotary vane pump
Technical data and graphs
Max. pumping speed 50 Hz
2.3 m<sup>3</sup>/h
Select diagram
Max. pumping speed 60 Hz
1.65 cfm
Select diagram
Ultimate partial vacuum (abs.) without gas ballast
4 x 10<sup>-4</sup> mbar
Ultimate vacuum
2 x 10<sup>-3</sup> mbar / 1.5 x 10<sup>-3</sup> torr
Ultimate vacuum with gas ballast
1 x 10<sup>-2</sup> mbar / 0.75 x 10<sup>-2</sup> torr
Number of stages
2
Lower ambient temperature (operation)
12 °C
Upper ambient temperature (operation)
40 °C
Lower ambient temperature (storage)
-10 °C
Upper ambient temperature (storage)
60 °C
Max. back pressure (abs.)
1.1 bar
Oil capacity (B-Oil) min.
0.36 l
Oil capacity (B-Oil) max.
0.84 l

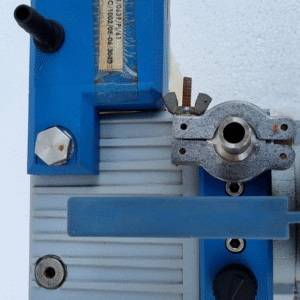

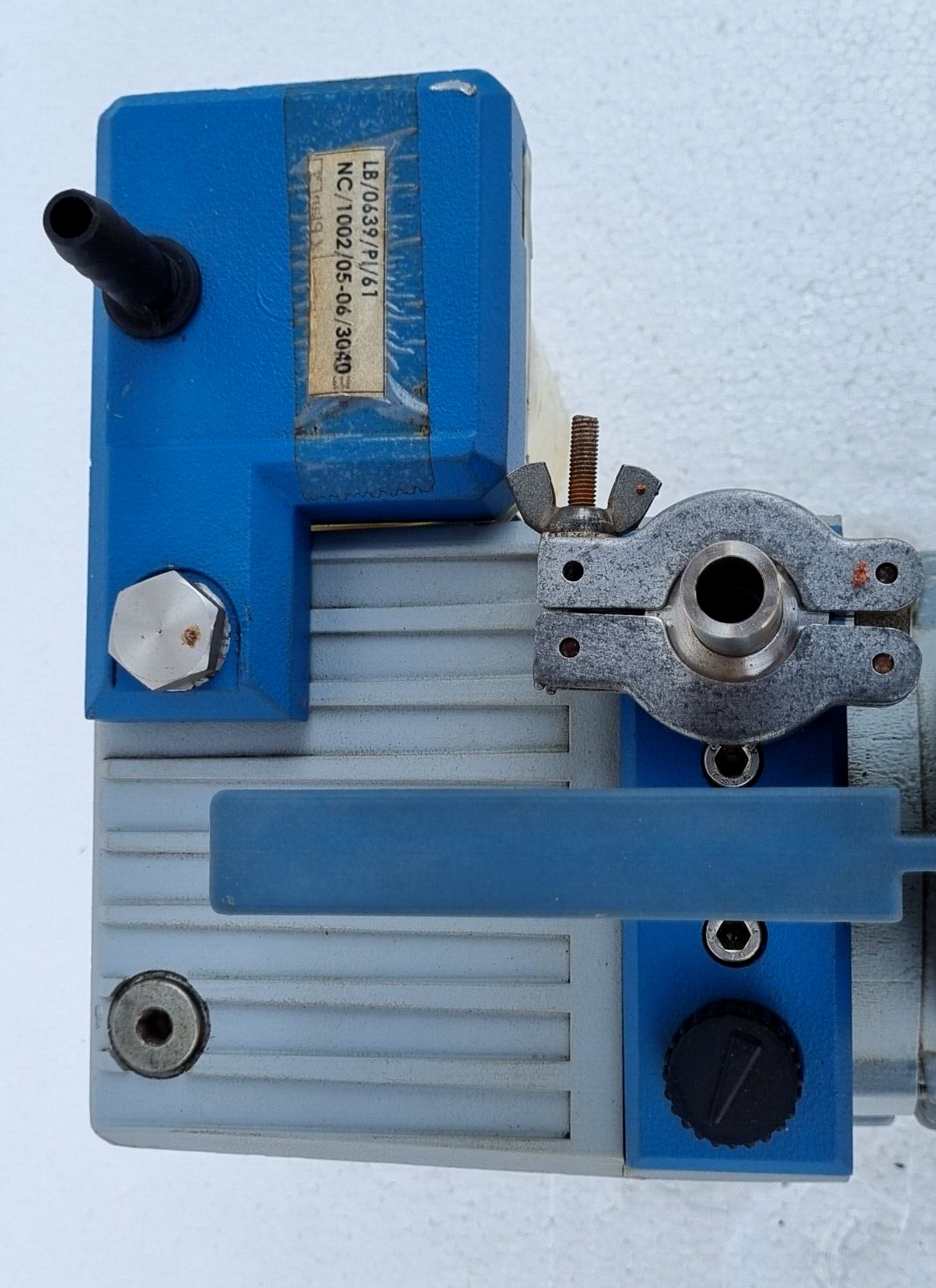

Inlet connection
small flange KF DN 16
Outlet connection
Hose nozzle DN 8-10 mm
Rated motor power
0.1 kW
Rated motor speed at 50/60 Hz
1500/1800 min<sup>-1</sup>
Protection class IEC 60529
IP 40
Dimension L in mm
390 mm
Dimension B in mm
156 mm
Dimension H in mm
240 mm
Weight
14.2 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)
48 dBA
NRTL certification
No
Items supplied
Pump oil filled and completely mounted, ready for use, with manual.
Rated mains voltage range 1
230 V
Mains frequency 1
50-60 Hz
*Free Shipping*

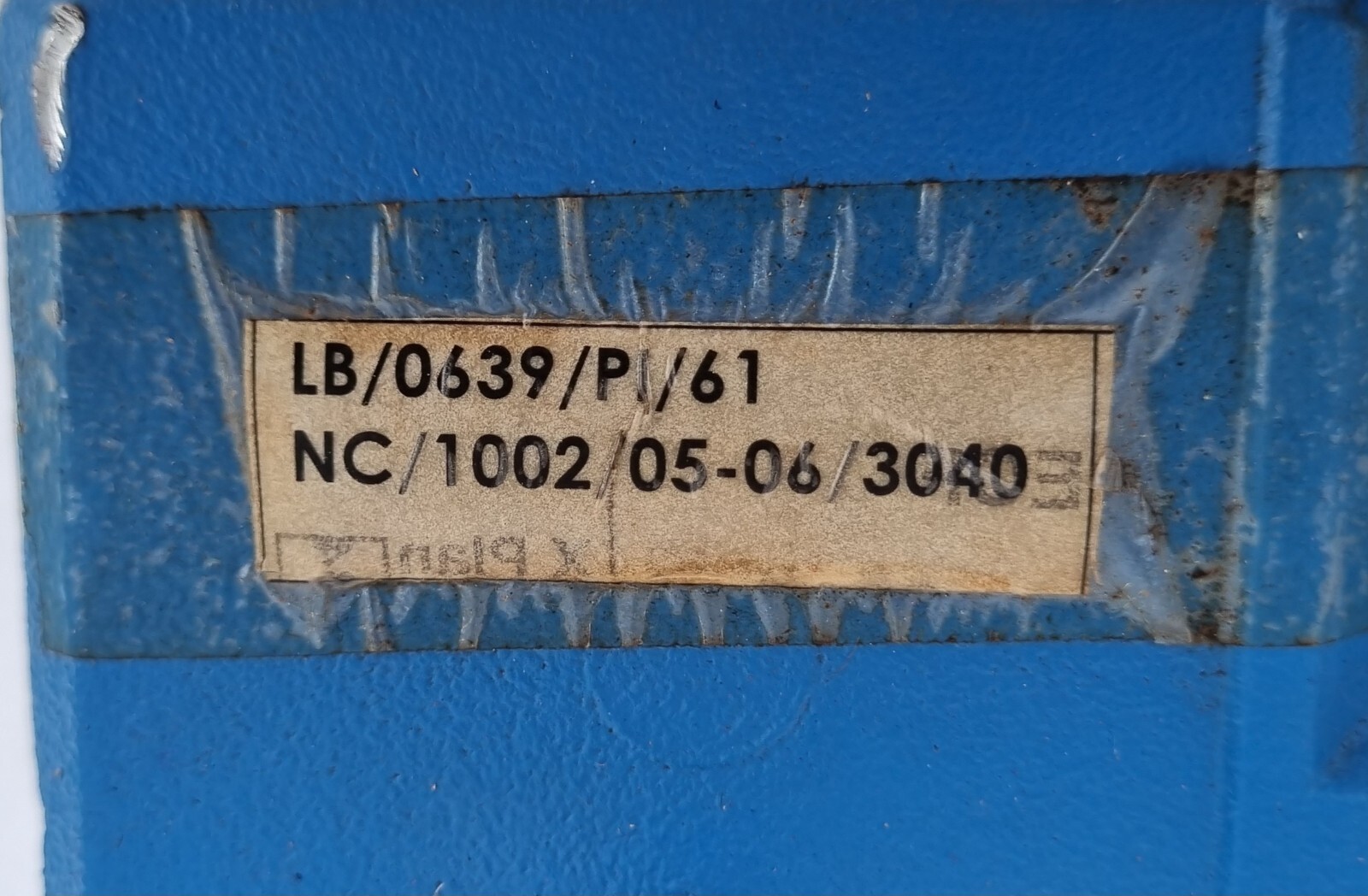

ORIGINAL IMAGES OF THE ACTUAL PRODUCT ARE UPLOADED, WHAT YOU SEE IS WHAT YOU GET
Payment:-
- Payment must be received within 7 days. If payment isn’t received within 7 days, The listing will be revoked and a Non-Paying Buyer alert will be filed.
Shipping :-
- Packages are usually shipped within 48 hours of payment receipt (Excluding Saturday/Sunday)
- International buyers, whatever the custom duty or charges if any will be borne by the buyer. As different countries charge Different Custom Duty. Buyer is responsible for Paying all the charges.
- Please check with your country’s customs office to determine what these additional costs will be prior to buying.
- Combined shipping is done at the sellers discretion. If you purchase more than one item from us, They may arrive in separate packages.
Returns :-
- All items are sold as it is. We accept returns only if the item was not as described in the listing.
- Buyer must return the item exactly as received within 7 days and will be responsible for all additional shipping
- Our Return rate is well below 1%. Please ask questions. Assumptions can be costly.
We do our best to present accurate, detailed information about every item we sell. If you have any questions, Please contact us before Buying.
If you are happy with our product don’t forget to leave us your feedback. Your feedback is very important to us; if you are unhappy for any reason please contact us.
